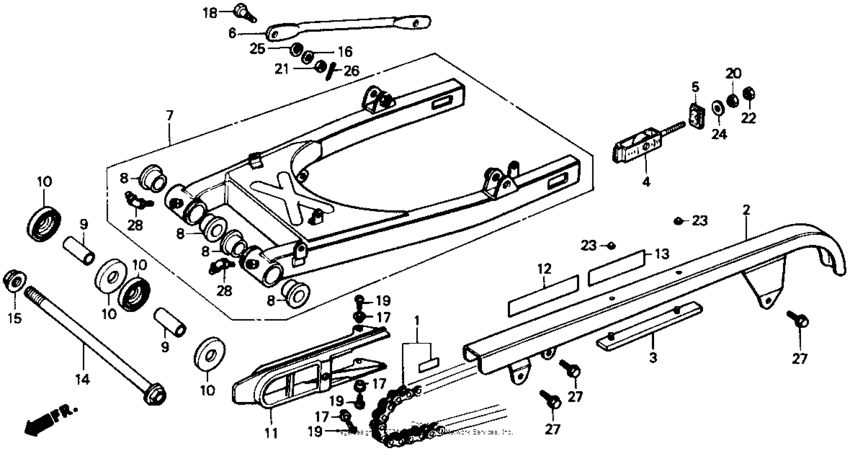

Rear swingarm Diagram Honda CMX250 Rebel
- Year
- 1986
- Model code
- CMX250CD A
- Sales region
- USA
- Frame
- JH2MC132*GK100001 - JH2MC132*GK104266
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
405A3-KR3-902
Chain set, drive
|
405A3-KR3-902 |
— | ||
|
2
|
2
40510-KR3-600 Case, drive chain |
40510-KR3-600 |
from US $62.91 |
||
|
3
|
3
40515-KR3-700 Slider, chain case |
40515-KR3-700 |
from US $14.69 |
||
|
4
|
4
40543-KR3-000 Adjuster, chain |
40543-KR3-000 |
from US $17.54 |
||
|
5
|
5
40546-KK6-000 Cap, swingarm end |
40546-KK6-000 |
from US $8.73 |
||
|
6
|
6
43431-KB2-000ZC Arm, rr. *nh1* |
43431-KB2-000ZC |
from US $12.88 |
||
|
7
|
7
52100-KR3-601ZA
Swingarm, rr. *nh1*
|
52100-KR3-601ZA |
— | ||
|
8
|
8
52109-KC1-003 Bush, swingarm |
52109-KC1-003 |
from US $14.21 |
||
|
9
|
9
52141-356-010 Collar, r. swingarm |
52141-356-010 |
from US $35.90 |
||
|
10
|
10
52144-356-005 Cap, dust seal |
52144-356-005 |
from US $14.21 |
||
|
11
|
11
52170-KR3-601 Slider, drive chain |
52170-KR3-601 |
from US $20.94 |
||
|
12
|
12
87505-KR3-670
Mark, tire caution
|
87505-KR3-670 |
— | ||
|
13
|
13
87509-KR3-770
Mark
|
87509-KR3-770 |
— | ||
|
14
|
14
90121-KR3-901
Bolt, swingarm pivot
|
90121-KR3-901 |
— | ||
|
15
|
15
90305-KR3-901
Nut, u (14mm)
|
90305-KR3-901 |
— | ||
|
16
|
16
90505-425-000 Washer, 8mm |
90505-425-000 |
from US $1.68 |
||
| replacement | |||||
|
16
|
16
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
16
|
16
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
17
|
17
90556-044-000 Washer, fr |
90556-044-000 |
from US $1.35 |
||
|
18
|
18
9281210000 Bolt a, stopper arm |
9281210000 |
from US $1.85 |
||
|
19
|
19
93901-25020 ScrewTAPPING, 5X8 |
93901-25020 |
from US $0.37 |
||
|
20
|
20
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
21
|
21
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
22
|
22
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
23
|
23
90303-GC2-630 Nut, flange cap, 5mm |
90303-GC2-630 |
from US $5.62 |
||
|
24
|
24
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
25
|
25
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
26
|
26
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
27
|
27
96001-0600802 Bolt, flange (6x8) |
96001-0600802 |
from US $0.74 |
||
|
28
|
28
96201-40000
Nipple, grease (b.t6)
|
96201-40000 |
— | ||
