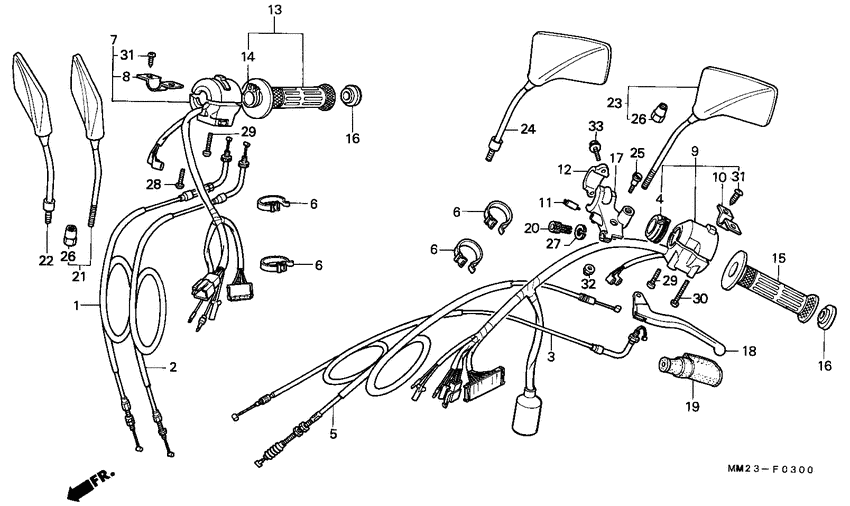

Handle lever/switch/ cable Diagram Honda CMX450
- Year
- 1987
- Model code
- CMX450CH
- Sales region
- Europe
- Frame
- PC182000006 - PC182000876
- Engine Capacity
- 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-MM2-000
Cable comp.a,thro
|
17910-MM2-000 |
— | ||
|
2
|
2
17920-MM2-000
Cable comp.b,thro
|
17920-MM2-000 |
— | ||
|
3
|
3
17950-MM2-000
Cable comp.,choke
|
17950-MM2-000 |
— | ||
|
4
|
4
17962-KE8-701
Lever, choke
|
17962-KE8-701 |
— | ||
|
5
|
5
22870-MM2-000
Cable comp.,clutc
|
22870-MM2-000 |
— | ||
|
6
|
6
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.78 |
||
|
7
|
7
35150-MM2-640
Switch assy.,star
|
35150-MM2-640 |
— | ||
|
8
|
8
35152-KE8-703 Plate |
35152-KE8-703 |
from US $5.25 |
||
|
9
|
9
35200-MM2-640
Switch assy.,wink
|
35200-MM2-640 |
— | ||
|
10
|
10
35204-KE8-702 Plate |
35204-KE8-702 |
from US $7.24 |
||
|
11
|
11
35330-413-003 Switch, fr. lever |
35330-413-003 |
from US $15.37 |
||
|
12
|
12
45517-166-006 Holder |
45517-166-006 |
from US $11.81 |
||
|
13
|
13
53140-MM2-000
Grip assy.,thrott
|
53140-MM2-000 |
— | ||
|
14
|
14
53141-422-000 Pipe, throttle grip |
53141-422-000 |
from US $12.64 |
||
|
15
|
15
53166-MM2-000
Grip,l.handle
|
53166-MM2-000 |
— | ||
|
17
|
17
53172-MJ6-000
Brkt.,hndl.lever
|
53172-MJ6-000 |
— | ||
|
18
|
18
53178-KR3-900
Lever comp.,l.han
|
53178-KR3-900 |
— | ||
|
19
|
19
53180-425-010 Boot, handlebar |
53180-425-010 |
US $20.47 |
||
| replacement | |||||
|
19
|
19
53180-K3B-H00 Boot, handlebar |
53180-K3B-H00 |
US $5.33 |
||
|
20
|
20
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.74 |
||
|
22
|
22
88110-MM2-640 Mirror,r.back |
88110-MM2-640 |
US $73.93 |
||
|
24
|
24
88120-MM2-640 Mirror,l.back |
88120-MM2-640 |
US $72.52 |
||
|
25
|
25
90113-KT7-000
Bolt,handle lever
|
90113-KT7-000 |
— | ||
|
27
|
27
90321-MA6-750 Nut, fixing |
90321-MA6-750 |
from US $8.29 |
||
|
28
|
28
93892-0502007 Screw-washer (5x20) |
93892-0502007 |
from US $0.44 |
||
|
29
|
29
93892-0502807 Screw-washer (5x28) |
93892-0502807 |
from US $0.52 |
||
|
30
|
30
93892-0504507 Screw-washer (5x45) |
93892-0504507 |
from US $0.67 |
||
|
31
|
31
93901-32120 ScrewTAPPING, 3X8 |
93901-32120 |
from US $0.37 |
||
|
32
|
32
90201-428-900 Nut, cap, 6mm |
90201-428-900 |
from US $3.26 |
||
|
33
|
33
96000-0602507 Bolt, flange (6x25) |
96000-0602507 |
US $1.92 |
||
| replacement | |||||
|
33
|
33
96001-0602507 Bolt, flange (6x25) |
96001-0602507 |
from US $0.59 |
||
