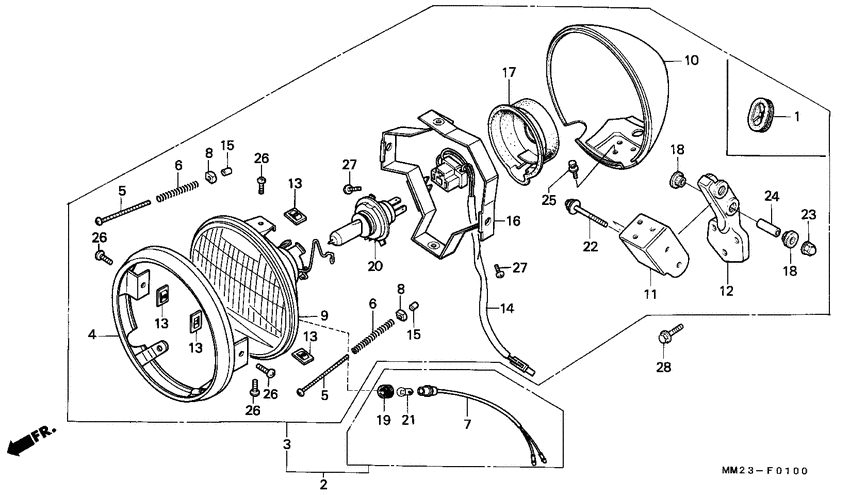

Headlight Diagram Honda CMX450
- Year
- 1987
- Model code
- CMX450CH
- Sales region
- Europe
- Frame
- PC182000006 - PC182000876
- Engine Capacity
- 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
33100-MM2-640
Light assy,head
|
33100-MM2-640 |
— | ||
|
4
|
4
33101-MM2-670
Rim,headlight
|
33101-MM2-670 |
— | ||
|
5
|
5
33103-MM2-003 Screw, beam adj. |
33103-MM2-003 |
from US $2.29 |
||
|
6
|
6
33108-MM2-003 Spring, beam adj. |
33108-MM2-003 |
from US $1.92 |
||
|
7
|
7
33110-KN1-000
Socket assy posit
|
33110-KN1-000 |
— | ||
|
8
|
8
33118-438-841 Nut, beam adj. |
33118-438-841 |
from US $2.29 |
||
|
9
|
9
33120-MM2-640 Headlight unit |
33120-MM2-640 |
US $128.13 |
||
|
10
|
10
33121-MM2-003
Case, headlight
|
33121-MM2-003 |
— | ||
|
11
|
11
33123-MM2-003
Bracket a,head li
|
33123-MM2-003 |
— | ||
|
12
|
12
33124-MM2-003
Bracket b,head li
|
33124-MM2-003 |
— | ||
|
13
|
13
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
14
|
14
33130-MM2-671
Socket, headlight
|
33130-MM2-671 |
— | ||
|
15
|
15
33136-426-830 Cover, screw |
33136-426-830 |
from US $1.92 |
||
|
16
|
16
33153-MM2-003 Ring, headlight |
33153-MM2-003 |
US $28.72 |
||
|
17
|
17
33180-MJ0-000
Cover, rubber
|
33180-MJ0-000 |
— | ||
| replacement | |||||
|
17
|
17
33180-MJ0-010 Cover, rubber |
33180-MJ0-010 |
from US $15.10 |
||
|
18
|
18
33718-MM2-000 Rubber |
33718-MM2-000 |
from US $3.33 |
||
|
19
|
19
33905-371-601 Rubber,joint |
33905-371-601 |
from US $3.26 |
||
|
20
|
20
34901-MC7-601 Bulb (12v 60/55w) |
34901-MC7-601 |
from US $37.60 |
||
| replacement | |||||
|
20
|
20
34901-MC7-601AH Bulb (12v60/55w) |
34901-MC7-601AH |
US $38.35 |
||
|
21
|
21
34903-388-611 Bulb (12v4w) (t8/4) |
34903-388-611 |
from US $3.91 |
||
|
22
|
22
90007-MM2-000
Bolt,flange,6x40
|
90007-MM2-000 |
— | ||
| replacement | |||||
|
22
|
22
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.59 |
||
|
23
|
23
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.18 |
||
|
24
|
24
91104-MM2-000
Collar,8x29
|
91104-MM2-000 |
— | ||
|
25
|
25
93482-0601200 Bolt-washer, 6x12 |
93482-0601200 |
US $0.59 |
||
| replacement | |||||
|
25
|
25
93412-060-120-0 Bolt-washer6X12 |
93412-060-120-0 |
from US $0.52 |
||
|
26
|
26
93500-050-081-A ScrewPAN, 5X8 |
93500-050-081-A |
US $0.37 |
||
| replacement | |||||
|
26
|
26
93500-050-080-A ScrewPAN, 5X8 |
93500-050-080-A |
from US $0.37 |
||
|
27
|
27
93500-050-120-B ScrewPAN, 5X12 |
93500-050-120-B |
from US $0.52 |
||
|
28
|
28
95800-080-200-7 Bolt,flange 8x20 |
95800-080-200-7 |
US $0.59 |
||
| replacement | |||||
|
28
|
28
95701-0802007 Bolt, flange, 8x20 |
95701-0802007 |
from US $0.59 |
||
