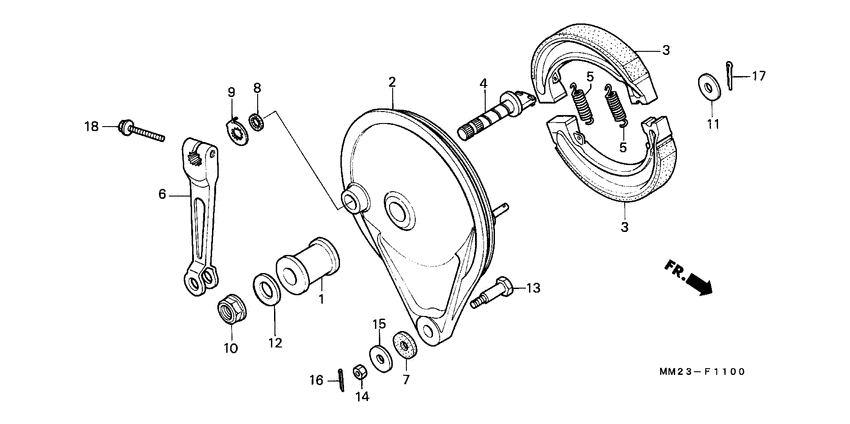

Rear brake panel Diagram Honda CMX450
- Year
- 1987
- Model code
- CMX450CH
- Sales region
- Europe
- Frame
- PC182000006 - PC182000876
- Engine Capacity
- 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42313-MM2-670
Collar,rr.brk.pan
|
42313-MM2-670 |
— | ||
|
2
|
2
43100-MF5-010
Panel comp.,rr.
|
43100-MF5-010 |
— | ||
|
3
|
3
43120-413-003
Shoe,rr.brake
|
43120-413-003 |
— | ||
| replacement | |||||
|
3
|
3
43120-413-405
*06430-413-405
|
43120-413-405 |
— | ||
|
3
|
3
43120-413-006
Shoe,rr.brake
|
43120-413-006 |
— | ||
| replacement | |||||
|
3
|
3
43120-413-405
*06430-413-405
|
43120-413-405 |
— | ||
|
4
|
4
43141-ME4-000
Cam rear brake
|
43141-ME4-000 |
— | ||
|
5
|
5
43151-329-000 Spring, brake shoe |
43151-329-000 |
from US $2.96 |
||
|
6
|
6
43410-ML4-000
Arm,rear brake
|
43410-ML4-000 |
— | ||
|
7
|
7
43434-286-000 Rubber |
43434-286-000 |
from US $2.66 |
||
|
8
|
8
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.22 |
||
|
9
|
9
45145-400-000 Indicator, brake |
45145-400-000 |
US $5.03 |
||
|
10
|
10
90305-KE8-003 Nut, axle (16mm) |
90305-KE8-003 |
from US $7.55 |
||
|
11
|
11
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
12
|
12
90559-469-000 Washer, plain (16mm) |
90559-469-000 |
US $8.19 |
||
|
13
|
13
90127-393-000 Bolt, rr |
90127-393-000 |
from US $4.59 |
||
|
14
|
14
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.44 |
||
|
15
|
15
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.25 |
||
|
16
|
16
94201-20180 PinSPLIT, 2.0X18 |
94201-20180 |
from US $0.37 |
||
| replacements | |||||
|
16
|
16
94201-29220
Pin
|
94201-29220 |
— | ||
|
16
|
16
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
16
|
16
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
17
|
17
94201-20200 PinSPLIT, 2.0X20 |
94201-20200 |
US $0.37 |
||
| replacements | |||||
|
17
|
17
94201-29220
Pin
|
94201-29220 |
— | ||
|
17
|
17
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
17
|
17
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
18
|
18
95700-0602200 Bolt, flange, 6x22 |
95700-0602200 |
US $0.59 |
||
| replacement | |||||
|
18
|
18
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
