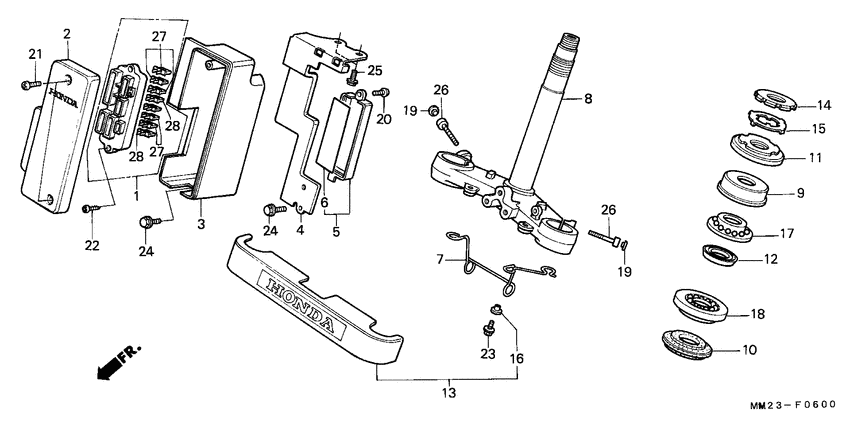

Steering stem Diagram Honda CMX450
- Year
- 1987
- Model code
- CMX450CH
- Sales region
- Europe
- Frame
- PC182000006 - PC182000876
- Engine Capacity
- 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32450-MM2-000
Box assy.,joint
|
32450-MM2-000 |
— | ||
|
2
|
2
32451-MM2-000
Cover,joint box
|
32451-MM2-000 |
— | ||
|
3
|
3
32452-MM2-000
Case,joint box
|
32452-MM2-000 |
— | ||
|
4
|
4
32453-MM2-000
Stay,joint box
|
32453-MM2-000 |
— | ||
|
5
|
5
38201-MM2-670
Cover,fuse
|
38201-MM2-670 |
— | ||
|
6
|
6
38215-MM2-670
Label, fuse
|
38215-MM2-670 |
— | ||
|
7
|
7
45466-MM2-770
Clamp, brake hose
|
45466-MM2-770 |
— | ||
|
8
|
8
53200-MM2-670
Stem comp.,steeri
|
53200-MM2-670 |
— | ||
|
9
|
9
53213-MB4-771 Dust seal |
53213-MB4-771 |
from US $5.67 |
||
|
10
|
10
53214-371-010 Dust seal |
53214-371-010 |
from US $6.39 |
||
|
11
|
11
53220-422-000 Thread |
53220-422-000 |
from US $15.05 |
||
|
13
|
13
61401-MM2-000
Cover,fr.
|
61401-MM2-000 |
— | ||
|
14
|
14
90302-425-830 Thread |
90302-425-830 |
from US $15.50 |
||
|
15
|
15
90506-425-830 Washer, lock |
90506-425-830 |
from US $4.88 |
||
|
16
|
16
90522-028-000 Washer, chain case setting |
90522-028-000 |
from US $2.22 |
||
|
17
|
17
91015-KT8-005 Bearing, head pipe |
91015-KT8-005 |
from US $18.58 |
||
|
18
|
18
91016-KT8-005 Bearing, head pipe |
91016-KT8-005 |
from US $20.12 |
||
|
19
|
19
91456-ME1-670 Cap (10mm) |
91456-ME1-670 |
from US $3.03 |
||
|
20
|
20
93500-040-120-A ScrewPAN, 4X12 |
93500-040-120-A |
from US $0.37 |
||
|
21
|
21
93500-040100G Screw, pan, 4x10 |
93500-040100G |
from US $0.37 |
||
|
22
|
22
93901-34320 ScrewTAPPING, 4X12 |
93901-34320 |
from US $0.37 |
||
|
23
|
23
95700-060-160-7 BoltFLANGE, 6X16 |
95700-060-160-7 |
US $0.52 |
||
| replacement | |||||
|
23
|
23
95701-060-160-7 BoltFLANGE, 6X16 |
95701-060-160-7 |
from US $0.52 |
||
|
24
|
24
96000-0601200 Bolt, flange, 6x12 |
96000-0601200 |
US $0.62 |
||
| replacement | |||||
|
24
|
24
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
25
|
25
96000-0601407 Bolt, flange, 6x14 |
96000-0601407 |
US $0.59 |
||
| replacement | |||||
|
25
|
25
96001-0601407 Bolt, flange, 6x14 |
96001-0601407 |
from US $0.59 |
||
|
26
|
26
96700-1002517 Bolt, socket (10x25) |
96700-1002517 |
US $0.89 |
||
|
27
|
27
98200-31000 FuseBLADE (10A) |
98200-31000 |
from US $0.52 |
||
|
28
|
28
98200-31500 FuseBLADE (15A) |
98200-31500 |
from US $0.52 |
||
