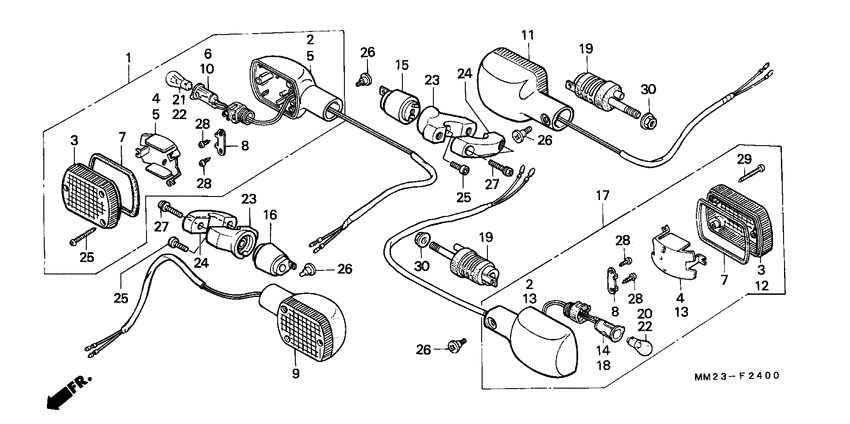

Winker Diagram Honda CMX450
- Year
- 1987
- Model code
- CMX450CH
- Sales region
- Europe
- Frame
- PC182000006 - PC182000876
- Engine Capacity
- 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-MM2-640
Winker assy.,r.fr
|
33400-MM2-640 |
— | ||
|
3
|
3
33402-MB1-003 Lens, turn signal |
33402-MB1-003 |
from US $13.84 |
||
|
5
|
5
33404-MB1-601
Base winker
|
33404-MB1-601 |
— | ||
|
6
|
6
33605-ME9-003
Cord,r.winker
|
33605-ME9-003 |
— | ||
| replacement | |||||
|
6
|
6
33605-MK3-405
Socket comp winke
|
33605-MK3-405 |
— | ||
|
7
|
7
33407-MB1-003 Gasket, lens |
33407-MB1-003 |
from US $4.44 |
||
|
8
|
8
33408-MB1-003 Holder |
33408-MB1-003 |
US $5.19 |
||
|
9
|
9
33450-MM2-640
Winker assy.,l.fr
|
33450-MM2-640 |
— | ||
|
10
|
10
33655-MF5-770
Cord,l.winke
|
33655-MF5-770 |
— | ||
| replacement | |||||
|
10
|
10
33605-MK3-405
Socket comp winke
|
33605-MK3-405 |
— | ||
|
11
|
11
33600-MM2-640
Winker assy.,r.rr
|
33600-MM2-640 |
— | ||
|
12
|
12
33602-MB1-601
Lens,winker
|
33602-MB1-601 |
— | ||
|
13
|
13
33604-MB1-601
Base comp.,winker
|
33604-MB1-601 |
— | ||
|
14
|
14
33605-MM2-000
Cord r,rr.winker
|
33605-MM2-000 |
— | ||
| replacement | |||||
|
14
|
14
33605-MK3-405
Socket comp winke
|
33605-MK3-405 |
— | ||
|
15
|
15
33640-MM2-671
Stay comp.,r.fr.w
|
33640-MM2-671 |
— | ||
|
16
|
16
33641-MM2-671
Stay comp.,l.fr.w
|
33641-MM2-671 |
— | ||
|
17
|
17
33650-MM2-640
Winker assy.,l.rr
|
33650-MM2-640 |
— | ||
|
18
|
18
33655-MM2-000
Cord l,rr.winker
|
33655-MM2-000 |
— | ||
| replacement | |||||
|
18
|
18
33605-MK3-405
Socket comp winke
|
33605-MK3-405 |
— | ||
|
19
|
19
33690-KR3-672 Stay comp.,rr win |
33690-KR3-672 |
from US $34.50 |
||
|
22
|
22
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
23
|
23
53130-MM2-003
Holder,rr.winker
|
53130-MM2-003 |
— | ||
|
24
|
24
53131-MM2-000
Cap,fr.winker hol
|
53131-MM2-000 |
— | ||
|
25
|
25
90071-ME9-000 Bolt, socket (6x15) |
90071-ME9-000 |
from US $2.29 |
||
|
26
|
26
90380-ME9-000 Bolt, special (6x8) |
90380-ME9-000 |
US $7.85 |
||
| replacement | |||||
|
26
|
26
90380-MB1-000 Screw, special (6x8) |
90380-MB1-000 |
from US $3.70 |
||
|
27
|
27
93892-050-200-0 Screw wash 5x20 |
93892-050-200-0 |
from US $0.44 |
||
|
28
|
28
93901-34320 ScrewTAPPING, 4X12 |
93901-34320 |
from US $0.37 |
||
|
29
|
29
9390134610 Screw, tap (4x25) |
9390134610 |
from US $0.37 |
||
|
30
|
30
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
