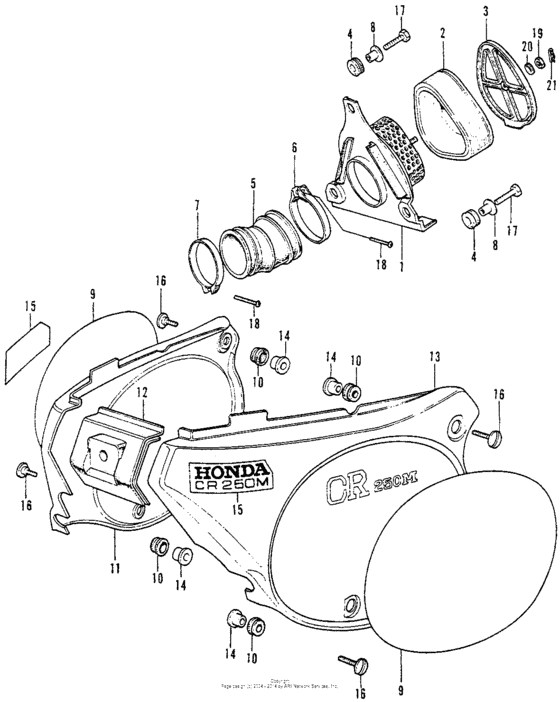

Air cleaner + side cover m Diagram Honda CR250
- Model code
- CR250M A
- Sales region
- USA
- Frame
- CR250M1000216 - CR250M1025537
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17211-357-020
Base, air cleaner
|
17211-357-020 |
— | ||
|
2
|
2
17212-357-010
Element,cleaner
|
17212-357-010 |
— | ||
|
3
|
3
17213-357-010
Holder,aircleaner
|
17213-357-010 |
— | ||
|
4
|
4
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
5
|
5
17253-357-020
Tube,cleaner conn
|
17253-357-020 |
— | ||
|
6
|
6
17256-357-000
Band a,conn.tube
|
17256-357-000 |
— | ||
|
7
|
7
17257-357-000
Band b, a/clnr tube
|
17257-357-000 |
— | ||
|
8
|
8
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
8
|
8
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
8
|
8
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
9
|
9
61132-357-810
Plate a, number
(Optional). |
61132-357-810 |
— | ||
|
9
|
9
61133-357-810
Plate b,number
(Optional). |
61133-357-810 |
— | ||
|
10
|
10
80105-061-000 Rubber a, rr. fender |
80105-061-000 |
from US $3.11 |
||
|
11
|
11
83500-357-010
New Genuine Part
|
83500-357-010 |
— | ||
|
12
|
12
83502-357-000
Setting rub.,side
|
83502-357-000 |
— | ||
|
13
|
13
83600-357-010 New Genuine Part |
83600-357-010 |
US $259.07 |
||
|
14
|
14
83601-357-000 Colr, cover setting |
83601-357-000 |
from US $4.44 |
||
|
15
|
15
87204-357-670
Emblem,side cover
|
87204-357-670 |
— | ||
|
16
|
16
90161-357-010
Screw,6x12
|
90161-357-010 |
— | ||
|
17
|
17
92101-06022-0A BoltHEX., 6X22 |
92101-06022-0A |
from US $0.55 |
||
|
18
|
18
93500-040200A Screw, pan, 4x20 |
93500-040200A |
from US $0.32 |
||
|
19
|
19
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
20
|
20
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
21
|
21
94251-06000 PinLOCK, 6MM |
94251-06000 |
from US $0.44 |
||
