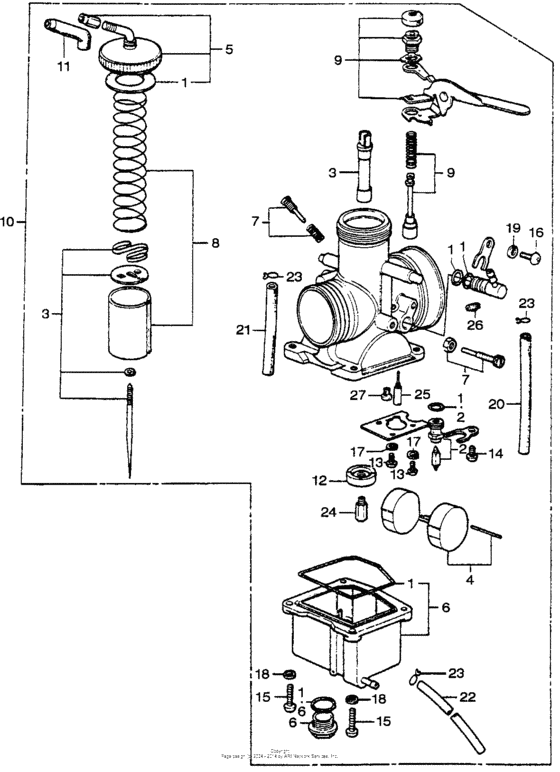

Carburetor m Diagram Honda CR250
- Model code
- CR250M A
- Sales region
- USA
- Frame
- CR250M1000216 - CR250M1025537
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-395-305
Gasket set
Use from Engine SN 009 A |
16010-395-305 |
— | ||
|
2
|
2
16011-356-004
Valve set, float
Use from Engine SN 009 A |
16011-356-004 |
— | ||
|
2
|
2
16011-357-004
Valve,float
Use from Engine SN 679 A to 679 B |
16011-357-004 |
— | ||
|
3
|
3
16012-357-014 Needle set, jetUse from Engine SN 679 A to 679 B |
16012-357-014 |
US $69.76 |
||
|
3
|
3
16012-357-034
Needle set,jet
Use from Engine SN 009 A |
16012-357-034 |
— | ||
|
4
|
4
16013-357-004
Float set
Use from Engine SN 679 A to 679 B |
16013-357-004 |
— | ||
|
4
|
4
16013-360-004
Float set
Use from Engine SN 009 A |
16013-360-004 |
— | ||
|
5
|
5
16014-357-004
Top set
Use from Engine SN 679 A to 679 B |
16014-357-004 |
— | ||
|
5
|
5
16014-357-014
Top set
Use from Engine SN 009 A |
16014-357-014 |
— | ||
|
6
|
6
16015-357-004
Chamber set, float
Use from Engine SN 679 A to 679 B |
16015-357-004 |
— | ||
|
6
|
6
16015-357-014
Chamber set, float
Use from Engine SN 009 A |
16015-357-014 |
— | ||
|
7
|
7
16016-357-004
Screw set
Use from Engine SN 679 A to 679 B |
16016-357-004 |
— | ||
|
7
|
7
16016-400-004
Screw set
Use from Engine SN 009 A |
16016-400-004 |
— | ||
|
8
|
8
16022-357-315
Valve set (#2.0)
(Optional). Use from Engine SN 679 A to 679 B |
16022-357-315 |
— | ||
|
8
|
8
16022-357-325
Valve set (#2.0)
(Optional). Use from Engine SN 009 A |
16022-357-325 |
— | ||
|
8
|
8
16022-357-415
Valve set (#3.0)
(Optional). Use from Engine SN 679 A to 679 B |
16022-357-415 |
— | ||
|
8
|
8
16022-357-425
Valve set (#3.0)
(Optional). Use from Engine SN 009 A |
16022-357-425 |
— | ||
|
8
|
8
16022-357-811
Valve set (#2.5)
Use from Engine SN 679 A to 679 B |
16022-357-811 |
— | ||
|
8
|
8
16022-357-812
Valve set (#2.5)
Use from Engine SN 009 A |
16022-357-812 |
— | ||
|
9
|
9
16046-357-004
Valve set, starter
Use from Engine SN 679 A to 679 B |
16046-357-004 |
— | ||
|
9
|
9
16046-361-670
Valve set, starter
Use from Engine SN 009 A |
16046-361-670 |
— | ||
|
10
|
10
16100-357-004
Carburetor (34mm)
|
16100-357-004 |
— | ||
|
11
|
11
16118-357-004
Cap, rubber
|
16118-357-004 |
— | ||
|
12
|
12
16168-357-004
Holder, jet
Use from Engine SN 679 A to 679 B |
16168-357-004 |
— | ||
|
12
|
12
16168-395-004
Holder,jet
Use from Engine SN 009 A |
16168-395-004 |
— | ||
|
13
|
13
93500-030060A Screw, pan, 3x6 |
93500-030060A |
from US $0.37 |
||
|
14
|
14
93500-040-100-A ScrewPAN, 4X10 |
93500-040-100-A |
from US $0.37 |
||
|
15
|
15
93500-040140A Screw, pan, 4x14Use from Engine SN 009 A |
93500-040140A |
from US $0.37 |
||
|
15
|
15
93500-040-160-A ScrewPAN, 4X16 Use from Engine SN 679 A to 679 B |
93500-040-160-A |
from US $0.37 |
||
|
16
|
16
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
17
|
17
94111-03000 WasherSPRING, 3MM |
94111-03000 |
from US $0.38 |
||
|
18
|
18
94111-04000 WasherSPRING, 4MM |
94111-04000 |
from US $0.37 |
||
|
19
|
19
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
20
|
20
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
21
|
21
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
22
|
22
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
23
|
23
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
24
|
24
99101-3571400 Jet, main (#140)(Optional). |
99101-3571400 |
from US $6.66 |
||
|
24
|
24
99101-3571420 Jet, main (#142)(Optional). |
99101-3571420 |
from US $6.66 |
||
|
24
|
24
99101-3571450 Jet, main (#145) |
99101-3571450 |
from US $6.66 |
||
|
24
|
24
99101-357-1480 Jet, main (#148)(Optional). |
99101-357-1480 |
from US $6.66 |
||
|
24
|
24
99113-GHB1500 Jet, main (#150)(Optional). |
99113-GHB1500 |
US $11.51 |
||
|
25
|
25
99103-357-0500
Jet,slow#50
(Optional). |
99103-357-0500 |
— | ||
|
25
|
25
99103-357-0550
Jet, slow (#55)
|
99103-357-0550 |
— | ||
|
25
|
25
99103-357-0600
Jet,slow#60
(Optional). |
99103-357-0600 |
— | ||
|
26
|
26
99105-357-1600
Jet,air#160
(Optional). |
99105-357-1600 |
— | ||
|
26
|
26
99105-357-1800
Jet, air (#180)
(Optional). |
99105-357-1800 |
— | ||
|
26
|
26
99105-357-2000 Jet,air#200 |
99105-357-2000 |
US $3.55 |
||
|
26
|
26
99105-357-2200
Jet, air (#220)
(Optional). |
99105-357-2200 |
— | ||
|
26
|
26
99105-357-2400
Jet,air#240
(Optional). |
99105-357-2400 |
— | ||
|
27
|
27
99114-357-1200
Jet, starter (#120)
Use from Engine SN 679 A to 679 B |
99114-357-1200 |
— | ||
|
27
|
27
99164-601-1200
Jet,slow air
Use from Engine SN 009 A |
99164-601-1200 |
— |
