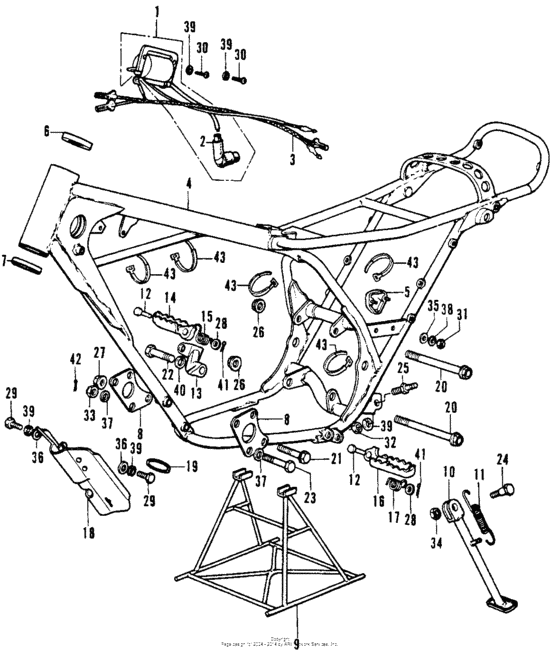

Frame wire harness m Diagram Honda CR250
- Model code
- CR250M A
- Sales region
- USA
- Frame
- CR250M1000216 - CR250M1025537
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30500-357-003
Coil,ignition
|
30500-357-003 |
— | ||
|
2
|
2
30700-373-153
Cap,noisesuppeser
|
30700-373-153 |
— | ||
|
3
|
3
32100-357-670
Harnes,wire
|
32100-357-670 |
— | ||
|
4
|
4
50100-357-010
Frame
|
50100-357-010 |
— | ||
|
5
|
5
50240-357-000
Slider,chain
|
50240-357-000 |
— | ||
|
6
|
6
50301-268-010 Race, steering ball |
50301-268-010 |
from US $11.84 |
||
|
7
|
7
50301-268-010 Race, steering ball |
50301-268-010 |
from US $11.84 |
||
|
8
|
8
50351-357-000
Bracket,engine
|
50351-357-000 |
— | ||
|
9
|
9
50500-357-811
Stand,main
(Optional). |
50500-357-811 |
— | ||
|
10
|
10
50530-357-000
Bar,side stand
|
50530-357-000 |
— | ||
|
11
|
11
50542-310-010
Spring,side stand
|
50542-310-010 |
— | ||
|
12
|
12
50603-GS9-010 Pin |
50603-GS9-010 |
from US $4.29 |
||
|
13
|
13
50615-357-000
Arm,r.step
|
50615-357-000 |
— | ||
|
14
|
14
50616-357-000
Step,r
|
50616-357-000 |
— | ||
|
15
|
15
50617-MM9-000 Spring, r |
50617-MM9-000 |
from US $3.77 |
||
|
16
|
16
50642-357-000
Step,l.
|
50642-357-000 |
— | ||
|
17
|
17
50644-MM9-000 Spring, l |
50644-MM9-000 |
from US $3.77 |
||
|
18
|
18
61141-357-810
Mudguard,engine
|
61141-357-810 |
— | ||
|
19
|
19
61143-357-810
Ring,mudguard
|
61143-357-810 |
— | ||
|
20
|
20
90102-357-010
Bolt,hex.,10mm
|
90102-357-010 |
— | ||
|
21
|
21
90103-357-000 Bolt,hex.,8mm |
90103-357-000 |
US $11.25 |
||
|
22
|
22
90104-357-000
Bolt, hex. (10mm)
|
90104-357-000 |
— | ||
|
23
|
23
90105-357-000
Bolt,hex.,8mm
|
90105-357-000 |
— | ||
|
24
|
24
90108-283-000 Screw,pivot |
90108-283-000 |
from US $6.96 |
||
|
25
|
25
90109-357-010
Hook,stand spring
|
90109-357-010 |
— | ||
|
26
|
26
90308-357-000 Nut, hex. (10mm) |
90308-357-000 |
from US $4.59 |
||
|
27
|
27
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
28
|
28
90518-921-000 Washer, plain, 8mm |
90518-921-000 |
from US $0.95 |
||
|
29
|
29
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
29
|
29
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
29
|
29
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
30
|
30
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
31
|
31
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
|
32
|
32
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
33
|
33
94011-080000S Nut, self-lock (8mm) |
94011-080000S |
from US $0.65 |
||
|
34
|
34
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
|
35
|
35
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
36
|
36
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
37
|
37
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
38
|
38
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
39
|
39
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
40
|
40
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
41
|
41
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
42
|
42
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
43
|
43
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
