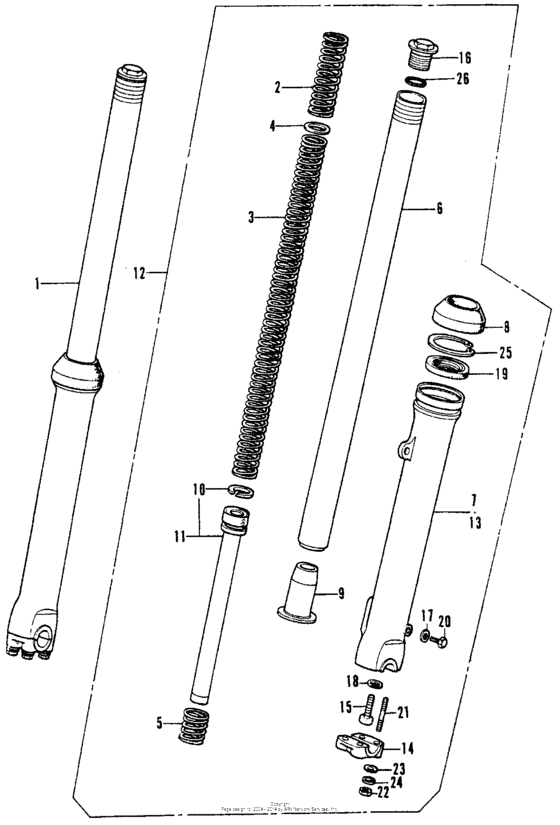

Front fork m Diagram Honda CR250
- Model code
- CR250M A
- Sales region
- USA
- Frame
- CR250M1000216 - CR250M1025537
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-357-000
Fork assy., r. fr.
|
51400-357-000 |
— | ||
|
2
|
2
51401-329-010
Spring a,fr.cush.
|
51401-329-010 |
— | ||
|
3
|
3
51402-329-000
Spring b,fr.cush.
|
51402-329-000 |
— | ||
|
4
|
4
51403-357-010
Plate, spring joint
|
51403-357-010 |
— | ||
|
5
|
5
51412-340-000 Spring, fr |
51412-340-000 |
from US $4.14 |
||
|
6
|
6
51420-357-000
Pipe, fork
|
51420-357-000 |
— | ||
|
7
|
7
51421-357-300
Case, r. fork
|
51421-357-300 |
— | ||
|
8
|
8
91254-435-003 Dust seal,fr.fork |
91254-435-003 |
from US $13.32 |
||
|
9
|
9
51432-357-000
Piece,oil lock
|
51432-357-000 |
— | ||
|
10
|
10
51437-329-010 Ring,piston |
51437-329-010 |
from US $8.44 |
||
|
11
|
11
51440-357-000
Pipe (lower)
|
51440-357-000 |
— | ||
|
12
|
12
51500-357-000
Fork Assy., L. Fr.
|
51500-357-000 |
— | ||
|
13
|
13
51521-357-300
Case, l. fr. fork
|
51521-357-300 |
— | ||
|
14
|
14
51634-340-000
Holder,front axle
|
51634-340-000 |
— | ||
|
15
|
15
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
16
|
16
90123-300-000 Bolt,front fork |
90123-300-000 |
from US $39.30 |
||
|
17
|
17
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
18
|
18
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
19
|
19
91255-KBH-003 Seal,oil,35x48x11 |
91255-KBH-003 |
from US $11.99 |
||
|
20
|
20
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
21
|
21
92900-08028-3B Bolt, stud (8x50) |
92900-08028-3B |
from US $0.74 |
||
|
22
|
22
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
23
|
23
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
24
|
24
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
25
|
25
94521-48000 Cir clip,in 48mm |
94521-48000 |
US $1.48 |
||
|
26
|
26
9460850000 O-ring, 23x2.8Use up to Frame SN 3004467 |
9460850000 |
from US $0.89 |
