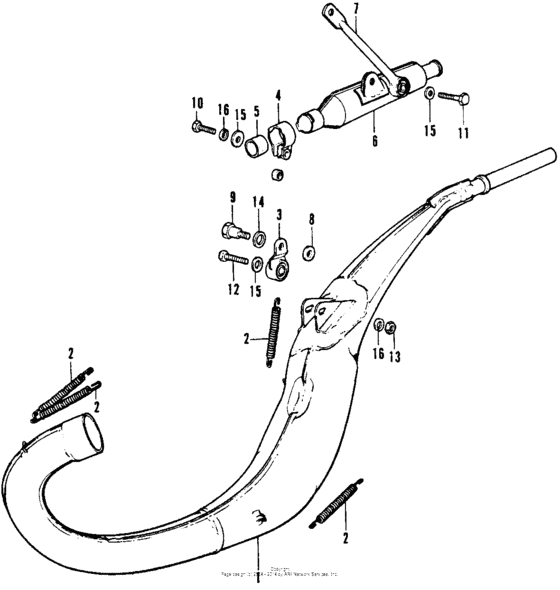

Muffler m Diagram Honda CR250
- Model code
- CR250M A
- Sales region
- USA
- Frame
- CR250M1000216 - CR250M1025537
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18300-357-007
Muffler, ex.
|
18300-357-007 |
— | ||
|
2
|
2
18332-357-010 Spring,exh.pipe |
18332-357-010 |
from US $14.14 |
||
|
3
|
3
18353-357-010
Bracket,expansion
|
18353-357-010 |
— | ||
|
4
|
4
18371-357-000
Band,muffler
|
18371-357-000 |
— | ||
|
5
|
5
18391-357-000
Packing muffler
|
18391-357-000 |
— | ||
|
6
|
6
18500-357-020
Muffler,sub
|
18500-357-020 |
— | ||
|
7
|
7
18511-357-020
Stay,sub muffler
|
18511-357-020 |
— | ||
|
8
|
8
43434-286-000 Rubber |
43434-286-000 |
from US $2.15 |
||
|
9
|
9
90138-357-010 Bolt (8x17) |
90138-357-010 |
from US $13.17 |
||
|
10
|
10
92101-08020-0A BoltHEX., 8X20 |
92101-08020-0A |
from US $0.52 |
||
|
11
|
11
92101-08025-0A Bolt, hex., 8x25 |
92101-08025-0A |
from US $0.59 |
||
|
12
|
12
92101-08035-0A Bolt, hex., 8x35 |
92101-08035-0A |
from US $0.59 |
||
|
13
|
13
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
14
|
14
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
15
|
15
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
16
|
16
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
