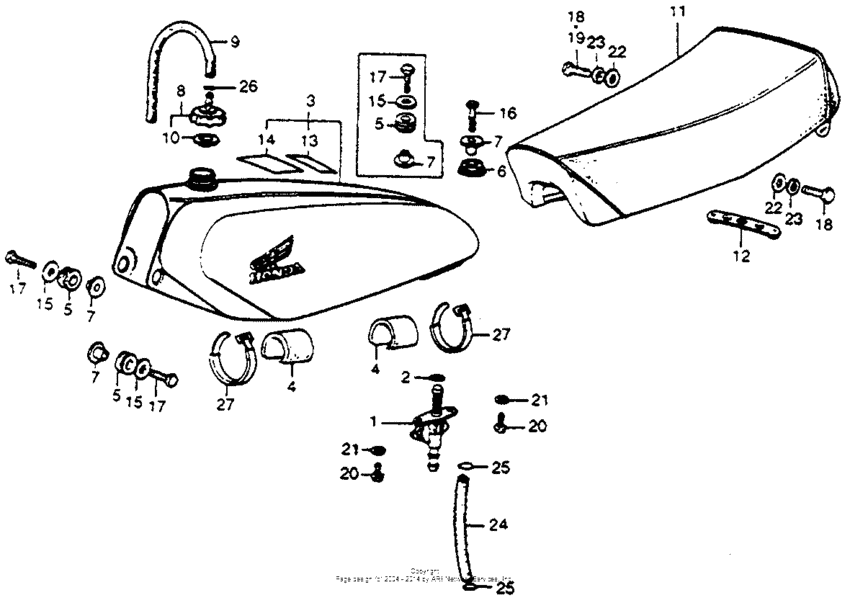

Fuel tank + seat Diagram Honda CR250
- Year
- 1976
- Model code
- CR250M A
- Sales region
- USA
- Frame
- CR250M3000001 - CR250M3004067
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-357-010
Cock.fu,cr250.350
|
16950-357-010 |
— | ||
|
2
|
2
91302-ZE9-003 O-ring, 11.8x2.4 |
91302-ZE9-003 |
from US $1.07 |
||
|
2
|
2
91320-MJ6-003 O-ring (11.8x2.4) |
91320-MJ6-003 |
from US $3.70 |
||
|
4
|
4
17506-357-000
Rubber b,tank set
|
17506-357-000 |
— | ||
|
5
|
5
17507-360-000
Rubber,tank mount
|
17507-360-000 |
— | ||
|
5
|
5
17500-381-770ZA
Tank, fuel *r23*
|
17500-381-770ZA |
— | ||
|
6
|
6
17507-360-000
Rubber,tank mount
|
17507-360-000 |
— | ||
|
7
|
7
17508-357-000 Collar,tank set |
17508-357-000 |
US $6.10 |
||
|
8
|
8
17510-355-010
Cap,fuel tank
|
17510-355-010 |
— | ||
|
9
|
9
17520-357-000
Tube
|
17520-357-000 |
— | ||
|
10
|
10
17624-896-750
Packing, fuel cap
|
17624-896-750 |
— | ||
|
11
|
11
77100-381-000
Seat
|
77100-381-000 |
— | ||
|
12
|
12
77106-357-000
Rubber,seat set
|
77106-357-000 |
— | ||
|
13
|
13
87208-357-670
Mark b,cushion
|
87208-357-670 |
— | ||
|
14
|
14
87560-357-671 Label, caution |
87560-357-671 |
from US $9.01 |
||
|
15
|
15
90501-040-000
Washer, seat setting
|
90501-040-000 |
— | ||
|
16
|
16
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
17
|
17
92101-06022-0A BoltHEX., 6X22 |
92101-06022-0A |
from US $0.55 |
||
|
18
|
18
92101-08016-0A Bolt, hex., 8x16 |
92101-08016-0A |
from US $0.52 |
||
|
20
|
20
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
21
|
21
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
22
|
22
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
23
|
23
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
24
|
24
95001-750-0860M Bulk hose (7.5x8000) |
95001-750-0860M |
from US $76.16 |
||
|
25
|
25
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
27
|
27
9501461300 Band a3, cable |
9501461300 |
from US $1.18 |
