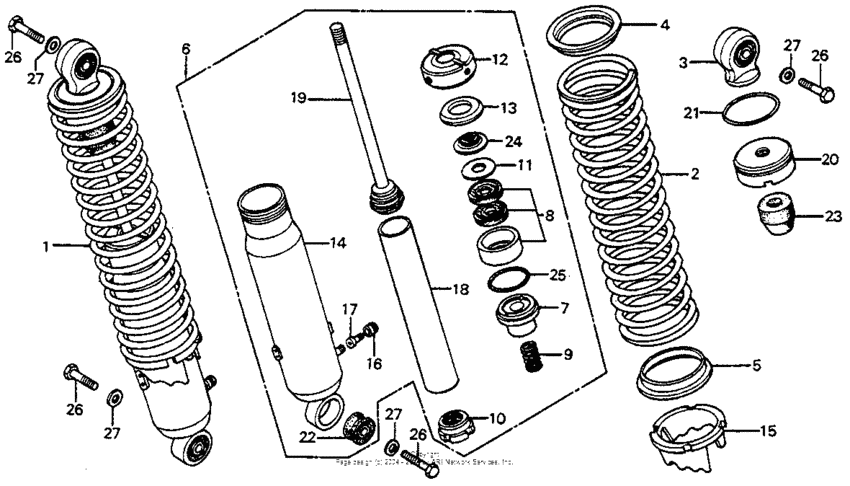

Rear shock absorber 76 Diagram Honda CR250
- Year
- 1976
- Model code
- CR250M A
- Sales region
- USA
- Frame
- CR250M3000001 - CR250M3004067
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-381-771ZA
S/abs assy. *r23*
|
52400-381-771ZA |
— | ||
|
2
|
2
52401-381-771
Spring, rr. shock
|
52401-381-771 |
— | ||
|
3
|
3
52403-360-700
Joint comp.,upper
|
52403-360-700 |
— | ||
|
4
|
4
52406-381-771
Guide,spring up.
|
52406-381-771 |
— | ||
|
5
|
5
52407-381-771
Guide,springlower
|
52407-381-771 |
— | ||
|
6
|
6
52410-381-771ZA
Damper, rr. *r23*
|
52410-381-771ZA |
— | ||
|
7
|
7
52411-381-771
Guide, rod
|
52411-381-771 |
— | ||
|
8
|
8
52412-381-771
Case,seal
|
52412-381-771 |
— | ||
|
9
|
9
52414-381-771
Spring, rebound stop
|
52414-381-771 |
— | ||
|
10
|
10
52415-381-771
Hldr, valve (lower)
|
52415-381-771 |
— | ||
|
11
|
11
52416-381-771
Guide, seal
|
52416-381-771 |
— | ||
|
12
|
12
52418-381-771
Seat, stopper
|
52418-381-771 |
— | ||
|
13
|
13
52419-381-771
Plate
|
52419-381-771 |
— | ||
|
14
|
14
52420-381-770ZA
Case, shock *r23*
|
52420-381-770ZA |
— | ||
|
15
|
15
52422-381-771
Adjuster,spring
|
52422-381-771 |
— | ||
|
16
|
16
52425-381-771 Cap, air valve |
52425-381-771 |
from US $4.59 |
||
|
17
|
17
52426-381-771 Core, valve |
52426-381-771 |
US $4.88 |
||
|
18
|
18
52430-381-771
Cylinder
|
52430-381-771 |
— | ||
|
19
|
19
52440-381-771
Rod, shock absorber
|
52440-381-771 |
— | ||
|
20
|
20
52459-381-771
Seat,spring
|
52459-381-771 |
— | ||
|
21
|
21
52460-381-771
Ring,stopper
|
52460-381-771 |
— | ||
|
22
|
22
52489-361-000 Bush, damper |
52489-361-000 |
US $7.25 |
||
|
23
|
23
52517-381-771
Rubber, stopper
|
52517-381-771 |
— | ||
|
24
|
24
91256-381-771
Dust seal
|
91256-381-771 |
— | ||
|
25
|
25
91317-381-771 O ring |
91317-381-771 |
US $6.22 |
||
|
26
|
26
92101-10032-0A Bolt, hex., 10x32 |
92101-10032-0A |
US $0.74 |
||
|
27
|
27
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
