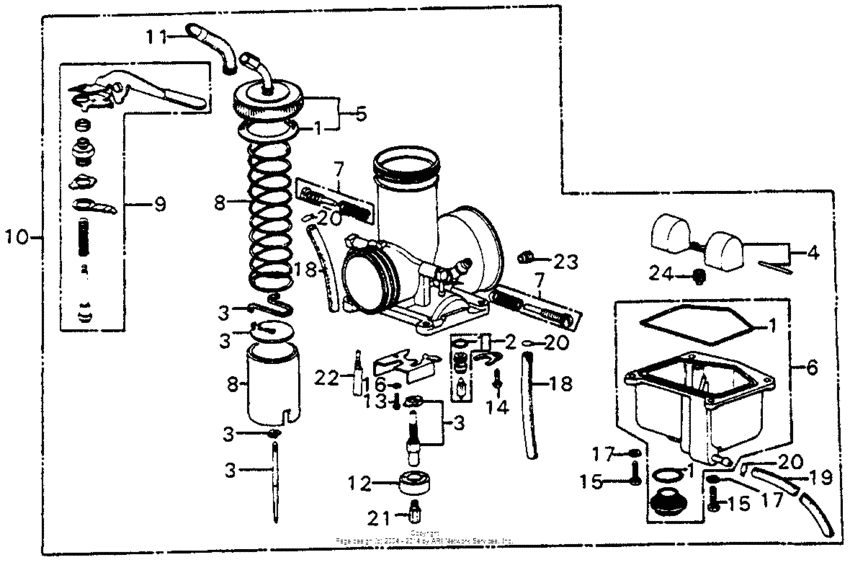

Carburetor components Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-395-305
Gasket set
(Optional). |
16010-395-305 |
— | ||
|
2
|
2
16011-356-004
Valve set, float
(Optional). |
16011-356-004 |
— | ||
|
3
|
3
16012-381-811
Needle set, jet
(Optional). |
16012-381-811 |
— | ||
|
4
|
4
16013-360-004
Float set
(Optional). |
16013-360-004 |
— | ||
|
5
|
5
16014-357-014
Top set
(Optional). |
16014-357-014 |
— | ||
|
6
|
6
16015-357-014
Chamber set, float
(Optional). |
16015-357-014 |
— | ||
|
7
|
7
16016-400-004
Screw set
(Optional). |
16016-400-004 |
— | ||
|
8
|
8
16022-357-325
Valve set (#2.0)
(Optional). |
16022-357-325 |
— | ||
|
8
|
8
16022-357-425
Valve set (#3.0)
(Optional). |
16022-357-425 |
— | ||
|
8
|
8
16022-357-812
Valve set (#2.5)
(Optional). |
16022-357-812 |
— | ||
|
9
|
9
16046-361-670
Valve set, starter
(Optional). |
16046-361-670 |
— | ||
|
10
|
10
16100-381-812
Carburetor (38)
(Optional). |
16100-381-812 |
— | ||
|
11
|
11
16118-357-004
Cap, rubber
(Optional). |
16118-357-004 |
— | ||
|
12
|
12
16168-395-004
Holder,jet
(Optional). |
16168-395-004 |
— | ||
|
13
|
13
93500-030060A Screw, pan, 3x6(Optional). |
93500-030060A |
from US $0.37 |
||
|
14
|
14
93500-040-100-A ScrewPAN, 4X10 (Optional). |
93500-040-100-A |
from US $0.37 |
||
|
15
|
15
93500-040140A Screw, pan, 4x14(Optional). |
93500-040140A |
from US $0.37 |
||
|
16
|
16
94111-03000 WasherSPRING, 3MM (Optional). |
94111-03000 |
from US $0.38 |
||
|
17
|
17
94111-04000 WasherSPRING, 4MM (Optional). |
94111-04000 |
from US $0.37 |
||
|
18
|
18
95001-350-0360M Bulk hose (3.5x3000)(Optional). |
95001-350-0360M |
from US $13.99 |
||
|
19
|
19
95001-350-0360M Bulk hose (3.5x3000)(Optional). |
95001-350-0360M |
from US $13.99 |
||
|
20
|
20
95002-02070 ClipTUBE(B7) (Optional). |
95002-02070 |
from US $0.44 |
||
|
21
|
21
99113-GHB1550 Jet, main (#155)(Optional). |
99113-GHB1550 |
US $11.48 |
||
|
21
|
21
99113-GHB1580 Jet, main (#158)(Optional). |
99113-GHB1580 |
US $11.51 |
||
|
21
|
21
99113-GHB1600 Jet, main (#160)(Optional). |
99113-GHB1600 |
US $11.51 |
||
|
21
|
21
99113-GHB1620 Jet, main (#162)(Optional). |
99113-GHB1620 |
from US $6.66 |
||
|
21
|
21
99113-GHB1650 Jet, main (#165)(Optional). |
99113-GHB1650 |
from US $6.66 |
||
|
22
|
22
99103-358-0450
Jet, slow (#45)
(Optional). |
99103-358-0450 |
— | ||
|
22
|
22
99103-358-0500
Jet, slow (#50)
(Optional). |
99103-358-0500 |
— | ||
|
22
|
22
99103-358-0550 Jet,slow (#55)(Optional). |
99103-358-0550 |
US $5.18 |
||
|
23
|
23
99105-357-1600
Jet,air#160
(Optional). |
99105-357-1600 |
— | ||
|
23
|
23
99105-357-1800
Jet, air (#180)
(Optional). |
99105-357-1800 |
— | ||
|
23
|
23
99105-357-2000 Jet,air#200(Optional). |
99105-357-2000 |
US $3.55 |
||
|
23
|
23
99105-357-2200
Jet, air (#220)
(Optional). |
99105-357-2200 |
— | ||
|
23
|
23
99105-357-2400
Jet,air#240
(Optional). |
99105-357-2400 |
— | ||
|
24
|
24
99164-601-1300
Jet,air
(Optional). |
99164-601-1300 |
— |
