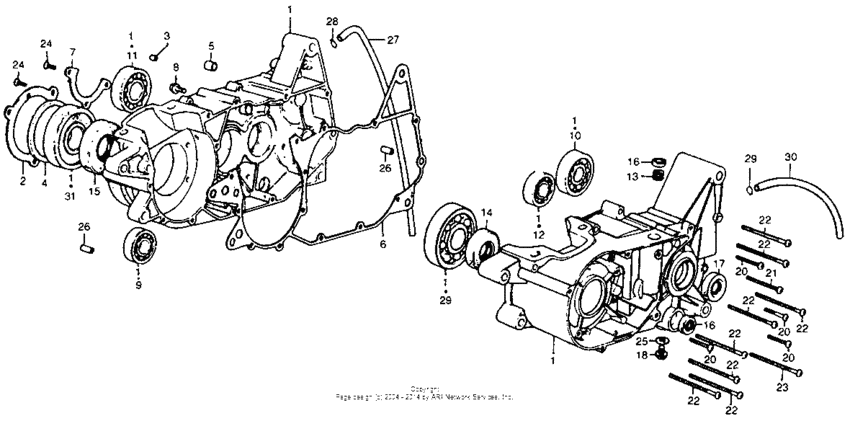

Crankcase m1-76 Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-381-000
Crankcase set
|
11000-381-000 |
— | ||
|
3
|
3
11105-357-010
Plate, bearing set
|
11105-357-010 |
— | ||
|
4
|
4
11191-381-306
Gasket, crankcase
|
11191-381-306 |
— | ||
|
6
|
6
23216-357-000
Plate
|
23216-357-000 |
— | ||
|
7
|
7
28254-357-000
Pin,kick stopper
|
28254-357-000 |
— | ||
|
8
|
8
91005-MG3-003
Bearing (17x42x12)
|
91005-MG3-003 |
— | ||
|
9
|
9
91005-357-010 B/brg rad n/com |
91005-357-010 |
from US $14.36 |
||
|
10
|
10
91006-357-010
B/brg rad n/com
|
91006-357-010 |
— | ||
| replacement | |||||
|
10
|
10
96120-620-530-0
B/brg rad n/com
|
96120-620-530-0 |
— | ||
|
10
|
10
96120-620-530-0
B/brg rad n/com
|
96120-620-530-0 |
— | ||
|
11
|
11
96120-6203000 Bearing, radial ball, 6203 |
96120-6203000 |
from US $6.66 |
||
|
12
|
12
91031-329-000
Needle brg
|
91031-329-000 |
— | ||
|
13
|
13
91202-357-003 Oil-seal,25x55x10 |
91202-357-003 |
US $13.24 |
||
|
14
|
14
91203-357-003 Oil-seal |
91203-357-003 |
US $24.99 |
||
|
15
|
15
91206-286-013 Oil seal, 14x28x7 (arai) |
91206-286-013 |
from US $4.44 |
||
|
16
|
16
91251-964-000 Dust *16x22x3.2 |
91251-964-000 |
from US $5.10 |
||
|
17
|
17
91201-446-004 Oil seal (20x34x6) |
91201-446-004 |
from US $4.40 |
||
|
18
|
18
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
19
|
19
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
20
|
20
93500-060450A Screw, pan, 6x45 |
93500-060450A |
from US $0.59 |
||
|
21
|
21
93500-060-600-A Screw,pan,6x60 |
93500-060-600-A |
from US $0.59 |
||
|
22
|
22
93500-060-650-A Screw, pan (6x65) |
93500-060-650-A |
from US $0.74 |
||
|
24
|
24
93600-060-140-A ScrewFLAT, 6X14 |
93600-060-140-A |
from US $0.44 |
||
|
25
|
25
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
26
|
26
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
27
|
27
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
28
|
28
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
29
|
29
9500235000 Clip, tube (c6.5) |
9500235000 |
from US $0.37 |
||
|
30
|
30
95003-080-2010S
*95003-08008-10m
|
95003-080-2010S |
— | ||
|
31
|
31
96102-630-630-0
B/brg rad n/com
|
96102-630-630-0 |
— | ||
