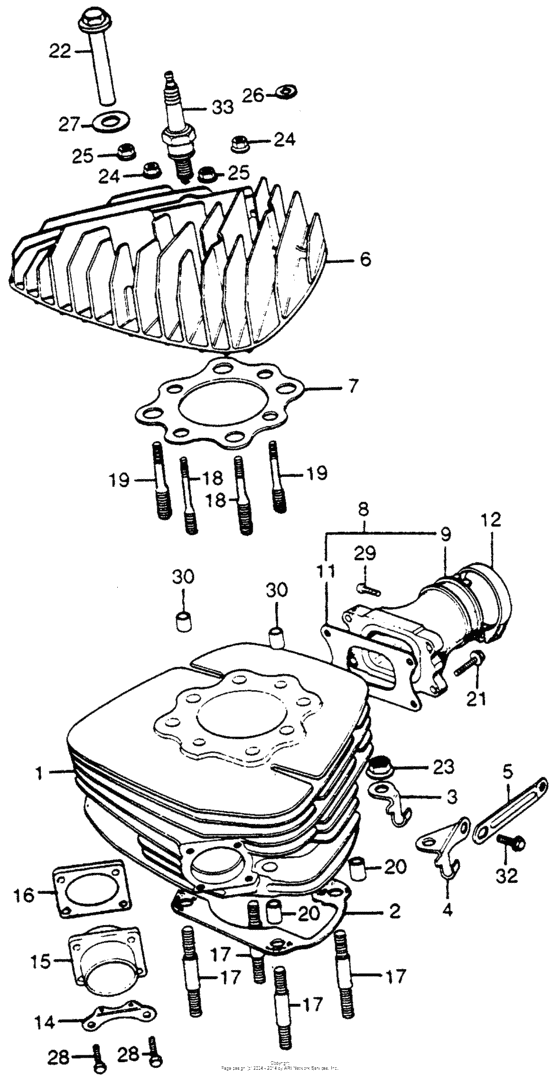

Cylinder + cylinder head Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-381-000
Cylinder
|
12100-381-000 |
— | ||
|
1
|
1
12100-381-810
Cylinder
(Optional). |
12100-381-810 |
— | ||
|
2
|
2
12191-381-306 Gasket, cylinder |
12191-381-306 |
US $9.32 |
||
|
4
|
4
12193-381-303
Clamp, clutch cable
|
12193-381-303 |
— | ||
|
5
|
5
12194-381-303
Bar, tension
|
12194-381-303 |
— | ||
|
6
|
6
12200-381-000
Cylinder head
|
12200-381-000 |
— | ||
|
7
|
7
12251-357-020
Gasket, cyl hd
|
12251-357-020 |
— | ||
|
8
|
8
16220-381-000
Pipe,inlet
|
16220-381-000 |
— | ||
|
9
|
9
16220-381-000
Pipe,inlet
|
16220-381-000 |
— | ||
|
12
|
12
16223-KS5-000 Band, insulator |
16223-KS5-000 |
from US $8.14 |
||
|
14
|
14
18331-357-000
Stay,exhaust pipe
|
18331-357-000 |
— | ||
|
15
|
15
18351-381-000
Joint, ex. pipe
|
18351-381-000 |
— | ||
|
17
|
17
90031-381-000 Bolt, stud, 10x68 |
90031-381-000 |
US $9.98 |
||
|
18
|
18
90032-381-000
Bolt,cyln.stud
|
90032-381-000 |
— | ||
|
19
|
19
90034-357-010
Bolt,stud,6x55
|
90034-357-010 |
— | ||
|
20
|
20
90036-357-000 Pin,dowel,12x16 |
90036-357-000 |
from US $2.74 |
||
|
21
|
21
90050-357-000 Bolt (6x22) |
90050-357-000 |
from US $3.63 |
||
|
23
|
23
90231-381-000
Nut,special,10mm
|
90231-381-000 |
— | ||
|
24
|
24
90233-357-000
Nut, flange, 6mm
|
90233-357-000 |
— | ||
|
25
|
25
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
28
|
28
92101-06018-0A Bolt, hex., 6x18 |
92101-06018-0A |
from US $0.44 |
||
|
29
|
29
93500-050-160-A Screw |
93500-050-160-A |
from US $0.37 |
||
|
30
|
30
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
32
|
32
95701-100-200-0 BoltFLANGE, 10X20 |
95701-100-200-0 |
from US $0.74 |
||
|
33
|
33
98079-59644 Plug,spark,b-9ev |
98079-59644 |
from US $9.92 |
||
|
33
|
33
98079-59679 Spark plug (br9eg) |
98079-59679 |
from US $9.92 |
