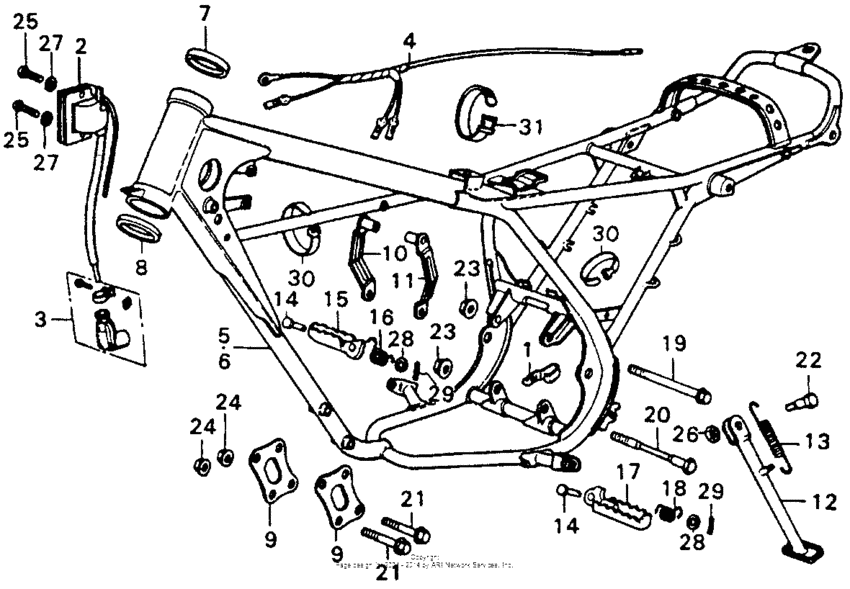

Frame + wire harness m1-76 Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11205-360-000
Clamp, tube
|
11205-360-000 |
— | ||
|
2
|
2
30500-381-000
Coil,ignition
|
30500-381-000 |
— | ||
|
3
|
3
30700-360-701
Cap,plug
|
30700-360-701 |
— | ||
|
4
|
4
32100-381-670
Harness, wire
|
32100-381-670 |
— | ||
|
5
|
5
50100-381-770-B
Frame *nh1*
|
50100-381-770-B |
— | ||
|
7
|
7
50301-268-010 Race, steering ball |
50301-268-010 |
from US $11.84 |
||
|
8
|
8
50301-268-010 Race, steering ball |
50301-268-010 |
from US $11.84 |
||
|
9
|
9
50351-381-000
Bracket, eng hgr
|
50351-381-000 |
— | ||
|
10
|
10
50361-381-303
Stiffener, r
|
50361-381-303 |
— | ||
|
11
|
11
50362-381-303
Stiffener, l.
|
50362-381-303 |
— | ||
|
12
|
12
50530-381-000 Bar, side stand |
50530-381-000 |
US $85.58 |
||
|
13
|
13
50542-310-010
Spring,side stand
|
50542-310-010 |
— | ||
|
14
|
14
50603-GS9-010 Pin |
50603-GS9-010 |
from US $4.29 |
||
|
15
|
15
50616-357-000
Step,r
|
50616-357-000 |
— | ||
|
16
|
16
50617-MM9-000 Spring, r |
50617-MM9-000 |
from US $3.77 |
||
|
17
|
17
50642-357-000
Step,l.
|
50642-357-000 |
— | ||
|
18
|
18
50644-MM9-000 Spring, l |
50644-MM9-000 |
from US $3.77 |
||
|
19
|
19
90102-358-000
Bolt, hex. (10mm)
|
90102-358-000 |
— | ||
|
20
|
20
90102-381-303
Bolt,hex., 10mm
|
90102-381-303 |
— | ||
|
21
|
21
90103-357-000 Bolt,hex.,8mm |
90103-357-000 |
US $11.25 |
||
|
22
|
22
90108-283-000 Screw,pivot |
90108-283-000 |
from US $6.96 |
||
|
23
|
23
90308-357-000 Nut, hex. (10mm) |
90308-357-000 |
from US $4.59 |
||
|
24
|
24
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
25
|
25
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
26
|
26
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
|
27
|
27
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
28
|
28
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
29
|
29
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
30
|
30
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
31
|
31
9501461200 Band a2, wire |
9501461200 |
from US $1.24 |
