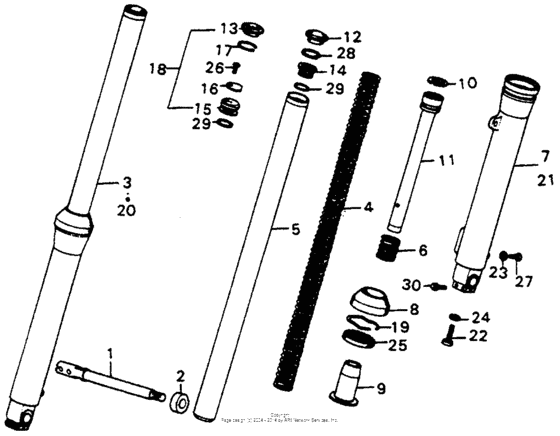

Front fork Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44301-381-810
Axle, fr. wheel
(Optional). |
44301-381-810 |
— | ||
|
2
|
2
44311-381-810 Collar,fr.side(Optional). |
44311-381-810 |
US $17.18 |
||
|
3
|
3
51400-381-812
Fork assy., r. fr.
(Optional). |
51400-381-812 |
— | ||
|
4
|
4
51401-381-003
Spring, fr. fork
(Optional). |
51401-381-003 |
— | ||
|
5
|
5
51410-381-811
Pipe, fr. fork
(Optional). |
51410-381-811 |
— | ||
|
6
|
6
51412-340-000 Spring, fr(Optional). |
51412-340-000 |
from US $4.14 |
||
|
7
|
7
51421-381-810
Case, r. fr. fork
(Optional). |
51421-381-810 |
— | ||
|
8
|
8
91254-435-003 Dust seal,fr.fork(Optional). |
91254-435-003 |
from US $13.32 |
||
|
9
|
9
51432-381-003
Piece, oil lock
(Optional). |
51432-381-003 |
— | ||
|
10
|
10
51437-329-010 Ring,piston(Optional). |
51437-329-010 |
from US $8.44 |
||
|
11
|
11
51440-381-003
Seat (lower)
(Optional). |
51440-381-003 |
— | ||
|
12
|
12
51449-381-013
Cap,fr.fork top
(Optional). |
51449-381-013 |
— | ||
|
14
|
14
51460-381-305
Seat set, spring
(Optional). |
51460-381-305 |
— | ||
|
19
|
19
51447-KL4-951 Ring(Optional). |
51447-KL4-951 |
from US $2.66 |
||
|
20
|
20
51500-381-812
Fork Assy., L. Fr.
(Optional). |
51500-381-812 |
— | ||
|
21
|
21
51521-381-810
Case, l. fr. fork
(Optional). |
51521-381-810 |
— | ||
|
22
|
22
90116-383-721 Bolt, socket (8mm)(Optional). |
90116-383-721 |
from US $3.85 |
||
|
23
|
23
90543-273-000 Gasket, fr.(Optional). |
90543-273-000 |
from US $2.15 |
||
|
24
|
24
90544-283-000 Washer (8mm)(Optional). |
90544-283-000 |
from US $2.52 |
||
|
25
|
25
91255-KBH-003 Seal,oil,35x48x11(Optional). |
91255-KBH-003 |
from US $11.99 |
||
|
27
|
27
92101-06010-0A Bolt, hex., 6x10(Optional). |
92101-06010-0A |
from US $0.44 |
||
|
28
|
28
94521-30000
Circlip (30mm)
(Optional). |
94521-30000 |
— | ||
|
29
|
29
9460850000 O-ring, 23x2.8(Optional). |
9460850000 |
from US $0.89 |
||
|
30
|
30
95700-060-280-0 BoltFLANGE, 6X28 (Optional). |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
30
|
30
95701-0602800 Bolt, flange, 6x28(Optional). |
95701-0602800 |
from US $0.59 |
||
|
30
|
30
95701-0602800 Bolt, flange, 6x28(Optional). |
95701-0602800 |
from US $0.59 |
||
