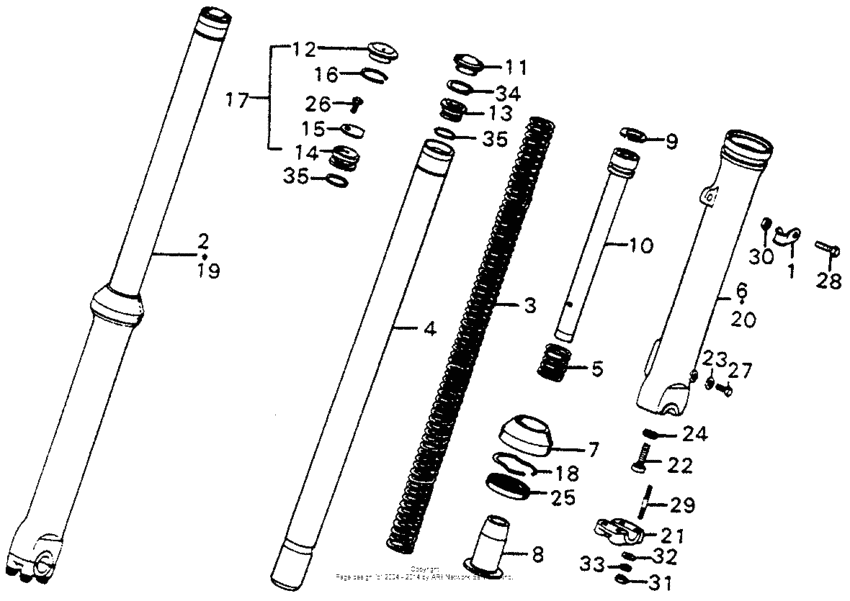

Front fork m1-76 Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45465-329-010
Clip,brakecable
|
45465-329-010 |
— | ||
|
2
|
2
51400-381-013
Fork assy., r. fr.
|
51400-381-013 |
— | ||
|
3
|
3
51401-381-003
Spring, fr. fork
|
51401-381-003 |
— | ||
|
4
|
4
51410-381-003
Pipe, fr. fork
|
51410-381-003 |
— | ||
|
5
|
5
51412-340-000 Spring, fr |
51412-340-000 |
from US $4.14 |
||
|
6
|
6
51421-381-003
Case, r. fr. fork
|
51421-381-003 |
— | ||
|
7
|
7
91254-435-003 Dust seal,fr.fork |
91254-435-003 |
from US $13.32 |
||
|
8
|
8
51432-381-003
Piece, oil lock
|
51432-381-003 |
— | ||
|
9
|
9
51437-329-010 Ring,piston |
51437-329-010 |
from US $8.44 |
||
|
10
|
10
51440-381-003
Seat (lower)
|
51440-381-003 |
— | ||
|
11
|
11
51449-381-013
Cap,fr.fork top
|
51449-381-013 |
— | ||
|
13
|
13
51460-381-305
Seat set, spring
|
51460-381-305 |
— | ||
|
18
|
18
51447-KL4-951 Ring |
51447-KL4-951 |
from US $2.66 |
||
|
19
|
19
51500-381-013
Fork Assy., L. Fr.
|
51500-381-013 |
— | ||
|
20
|
20
51521-381-003
Case, l. fr. fork
|
51521-381-003 |
— | ||
|
21
|
21
51634-340-000
Holder,front axle
|
51634-340-000 |
— | ||
|
22
|
22
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
23
|
23
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
24
|
24
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
25
|
25
91255-KBH-003 Seal,oil,35x48x11 |
91255-KBH-003 |
from US $11.99 |
||
|
27
|
27
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
28
|
28
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
29
|
29
92900-08028-3B Bolt, stud (8x50) |
92900-08028-3B |
from US $0.74 |
||
|
30
|
30
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
31
|
31
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
32
|
32
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
33
|
33
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
34
|
34
94521-30000
Circlip (30mm)
|
94521-30000 |
— | ||
|
35
|
35
9460850000 O-ring, 23x2.8 |
9460850000 |
from US $0.89 |
