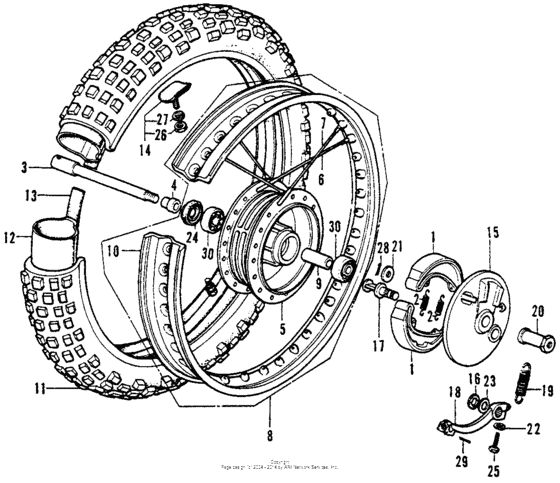

Front wheel Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06450-KC2-680 Shoe set, brake |
06450-KC2-680 |
from US $25.25 |
||
|
NI
|
NI
431A2-329-670 Set brake shoe |
431A2-329-670 |
US $38.91 |
||
| replacement | |||||
|
NI
|
NI
06450-KC2-680 Shoe set, brake |
06450-KC2-680 |
from US $25.25 |
||
|
1
|
1
43120-329-670 Shoe,rear brake |
43120-329-670 |
US $39.73 |
||
| replacement | |||||
|
1
|
1
06450-KC2-680 Shoe set, brake |
06450-KC2-680 |
from US $25.25 |
||
|
2
|
2
43151-329-000 Spring, brake shoe |
43151-329-000 |
from US $2.96 |
||
|
3
|
3
44301-329-000
Axle,front wheel
|
44301-329-000 |
— | ||
|
4
|
4
44311-357-000
Colr, fr. wheel side
|
44311-357-000 |
— | ||
|
5
|
5
44601-381-000
Hub, fr. wheel
|
44601-381-000 |
— | ||
|
6
|
6
44606-357-305 Spoke a.,front |
44606-357-305 |
US $10.03 |
||
|
7
|
7
44607-357-305
Spoke b.,front
|
44607-357-305 |
— | ||
|
9
|
9
44620-230-000 Collar, fr |
44620-230-000 |
from US $6.22 |
||
|
10
|
10
44701-381-013
Rim, fr. wheel
|
44701-381-013 |
— | ||
|
11
|
11
44711-357-003 Tire 300-214pm7 |
44711-357-003 |
US $51.36 |
||
|
12
|
12
44712-446-631
Tube (2.75/3.00-21)
|
44712-446-631 |
— | ||
|
13
|
13
44713-357-004
Flap, tire
Use up to Frame SN 2002837 |
44713-357-004 |
— | ||
|
13
|
13
44713-340-003
Flap 2751300-21
Use from Frame SN 2002838 |
44713-340-003 |
— | ||
|
14
|
14
44715-444-000
Stopper,bead
|
44715-444-000 |
— | ||
|
15
|
15
45100-357-000
Panel, fr. brake
|
45100-357-000 |
— | ||
|
16
|
16
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
17
|
17
45141-357-010 Cam, fr. brake |
45141-357-010 |
US $37.62 |
||
|
18
|
18
45410-357-000
Arm,front brake
|
45410-357-000 |
— | ||
|
19
|
19
45435-357-000
Spring,brake arm
|
45435-357-000 |
— | ||
|
20
|
20
90305-329-000
Nut,fr.wheel axle
|
90305-329-000 |
— | ||
|
21
|
21
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
22
|
22
90525-001-000 WasherRR. BRAKE ARM |
90525-001-000 |
from US $1.78 |
||
|
23
|
23
90549-121-000
Washer,plain 14mm
|
90549-121-000 |
— | ||
|
24
|
24
91252-230-003 Oil seal (26x42x7) |
91252-230-003 |
from US $9.92 |
||
|
25
|
25
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
26
|
26
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
27
|
27
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
28
|
28
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
29
|
29
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
29
|
29
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
29
|
29
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
29
|
29
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
29
|
29
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
30
|
30
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
||
