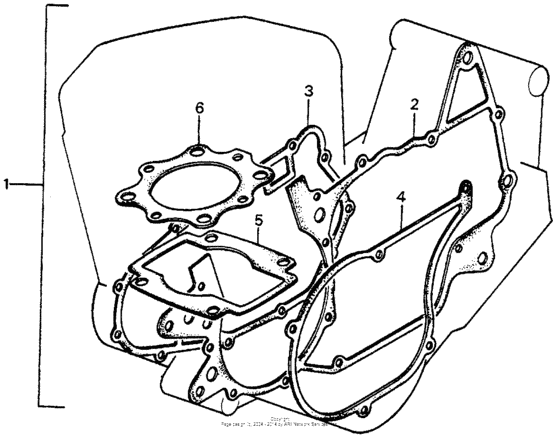

Gasket set Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06111-381-S00
Gasket Kit B
(Optional). |
06111-381-S00 |
— | ||
|
2
|
2
11191-381-306
Gasket, crankcase
(Optional). |
11191-381-306 |
— | ||
|
3
|
3
11394-357-306
Gasket, r
(Optional). |
11394-357-306 |
— | ||
|
4
|
4
11395-357-306
Gasket, l
(Optional). |
11395-357-306 |
— | ||
|
5
|
5
12191-381-306 Gasket, cylinder(Optional). |
12191-381-306 |
US $9.32 |
||
|
6
|
6
12251-357-020
Gasket, cyl hd
(Optional). |
12251-357-020 |
— |
