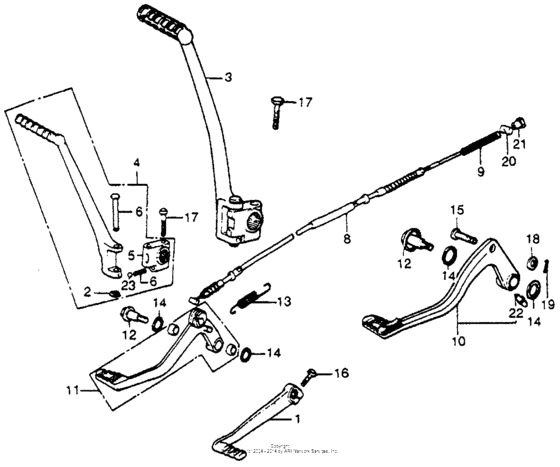

Kick starter arm + brake pedals Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24701-381-000
Pedal,gear change
|
24701-381-000 |
— | ||
|
2
|
2
28293-124-000 Clip, kick starter arm |
28293-124-000 |
from US $2.44 |
||
|
4
|
4
28300-381-000
Arm,kick starter
|
28300-381-000 |
— | ||
|
5
|
5
28302-357-010
Joint, kick arm
|
28302-357-010 |
— | ||
|
6
|
6
28321-357-000
Pin
|
28321-357-000 |
— | ||
|
7
|
7
28333-357-000
Spring,kick,start
|
28333-357-000 |
— | ||
|
8
|
8
43450-381-000
Cable,rr.brake
|
43450-381-000 |
— | ||
|
9
|
9
45452-044-300
Spring a,cable
|
45452-044-300 |
— | ||
|
11
|
11
46510-381-000
Pedal, brake
|
46510-381-000 |
— | ||
|
12
|
12
46513-357-010
Shaft,brk.pivot
|
46513-357-010 |
— | ||
|
13
|
13
46514-357-000
Spring,brk.pedal
|
46514-357-000 |
— | ||
|
14
|
14
46516-357-000
Dust seal,brake
|
46516-357-000 |
— | ||
|
16
|
16
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
17
|
17
92101-08025-0A Bolt, hex., 8x25 |
92101-08025-0A |
from US $0.59 |
||
|
20
|
20
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
21
|
21
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
23
|
23
96211-08000 Ball |
96211-08000 |
from US $0.22 |
