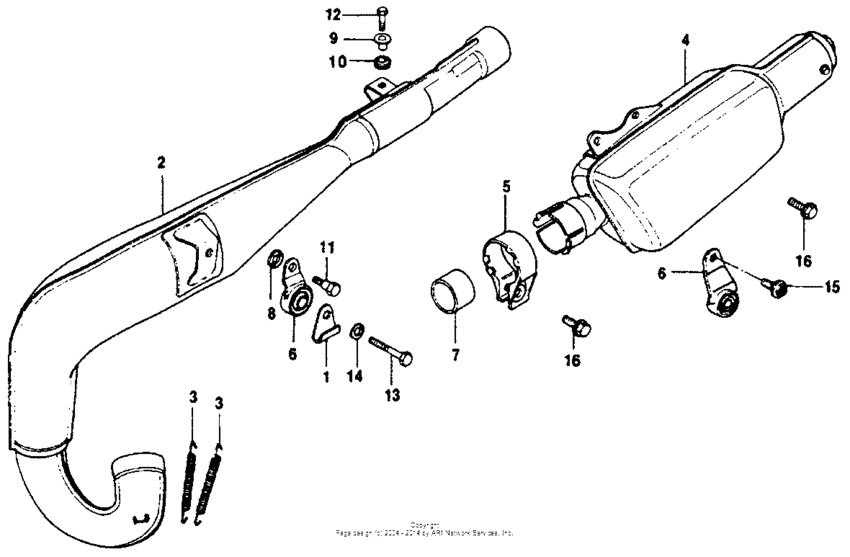

Muffler m1-76 Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17918-381-000
Clamp
|
17918-381-000 |
— | ||
|
2
|
2
18300-381-007
Muffler, ex.
|
18300-381-007 |
— | ||
|
3
|
3
18332-357-010 Spring,exh.pipe |
18332-357-010 |
from US $14.14 |
||
|
4
|
4
18350-381-677
Sub-muffler
|
18350-381-677 |
— | ||
|
5
|
5
18351-381-670
Band, muffler
|
18351-381-670 |
— | ||
|
6
|
6
18353-357-010
Bracket,expansion
|
18353-357-010 |
— | ||
|
7
|
7
18392-MK5-000 Gasket, muffler |
18392-MK5-000 |
from US $17.60 |
||
|
8
|
8
43434-286-000 Rubber |
43434-286-000 |
from US $2.15 |
||
|
9
|
9
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
9
|
9
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
9
|
9
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
10
|
10
61315-358-000 Rubber,mount,22mm |
61315-358-000 |
from US $6.79 |
||
|
11
|
11
90138-381-000
Bolt, chamber setting
|
90138-381-000 |
— | ||
|
12
|
12
92101-06022-0A BoltHEX., 6X22 |
92101-06022-0A |
from US $0.55 |
||
|
13
|
13
92101-08032-0B Bolt, hex. (8x32) |
92101-08032-0B |
from US $0.90 |
||
|
14
|
14
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
16
|
16
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
||
