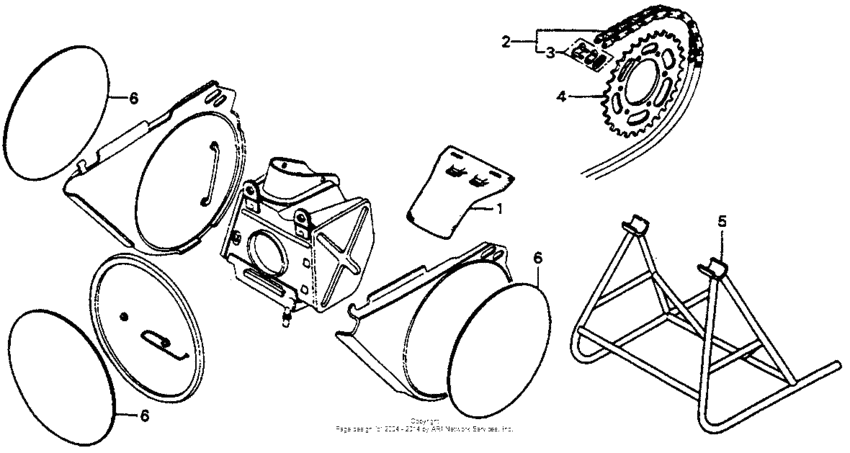

Number plate + chain Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17211-381-810
Mudguard,cleaner
(Optional). |
17211-381-810 |
— | ||
|
2
|
2
40530-381-811 Chain, drive(Optional). |
40530-381-811 |
US $143.62 |
||
|
3
|
3
40531-958-003
Joint,drive chain
(Optional). |
40531-958-003 |
— | ||
|
4
|
4
41201-395-810
Sprocket (49t)
(Optional). |
41201-395-810 |
— | ||
|
4
|
4
41201-395-820
Sprocket (51t)
(Optional). |
41201-395-820 |
— | ||
|
5
|
5
50500-381-810
Stand, main
(Optional). |
50500-381-810 |
— | ||
|
6
|
6
61132-357-810
Plate a, number
(Optional). |
61132-357-810 |
— | ||
|
6
|
6
61133-357-810
Plate b,number
(Optional). |
61133-357-810 |
— |
