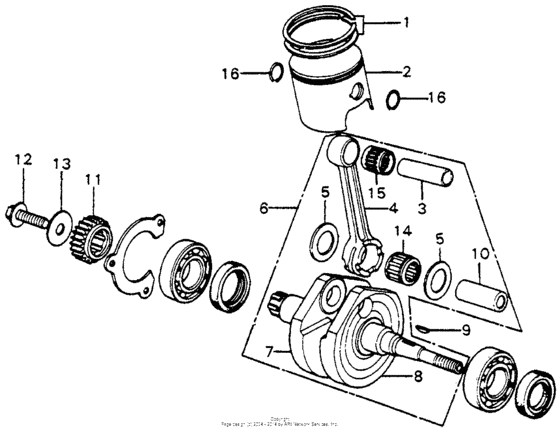

Piston + crankshaft Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13011-381-003
Ring set (std)
|
13011-381-003 |
— | ||
|
1
|
1
13021-381-003
Ring set (os) (0.25)
|
13021-381-003 |
— | ||
|
1
|
1
13031-381-003 Ring set (os) (0.50)(Optional). |
13031-381-003 |
US $50.29 |
||
|
1
|
1
13041-381-003 Ring set (os) (0.75)(Optional). |
13041-381-003 |
US $39.42 |
||
|
1
|
1
13051-381-003 Ring set (1.00)(Optional). |
13051-381-003 |
US $47.33 |
||
|
2
|
2
13101-381-000 Piston (std) |
13101-381-000 |
US $92.50 |
||
|
2
|
2
13102-395-000 Piston (os) (0.25)(Optional). |
13102-395-000 |
US $325.21 |
||
|
2
|
2
13103-395-000
Piston (os) (0.50)
(Optional). |
13103-395-000 |
— | ||
|
2
|
2
13104-395-000
Piston comp
(Optional). |
13104-395-000 |
— | ||
|
2
|
2
13105-395-000
Piston (1.00)
(Optional). |
13105-395-000 |
— | ||
|
3
|
3
13111-357-000
Pin a,piston
|
13111-357-000 |
— | ||
|
3
|
3
13112-357-000
Pin b,piston
|
13112-357-000 |
— | ||
|
4
|
4
13201-KA4-700
Rod,connecting
|
13201-KA4-700 |
— | ||
|
5
|
5
13202-357-300 Plate,conrod side |
13202-357-300 |
US $14.28 |
||
|
6
|
6
13300-381-000
Crankshaft
|
13300-381-000 |
— | ||
|
7
|
7
13311-381-300
Crankshaft, r.
|
13311-381-300 |
— | ||
|
8
|
8
13321-381-300
Crankshaft, l
|
13321-381-300 |
— | ||
|
9
|
9
13331-357-000 Key, special woodruff, 25x18 |
13331-357-000 |
from US $4.74 |
||
|
10
|
10
13381-357-340
Pin crank 1
|
13381-357-340 |
— | ||
|
11
|
11
13615-357-030
Gear, primary drive
|
13615-357-030 |
— | ||
|
12
|
12
90013-333-010
Bolt,u.b.s,12x30
|
90013-333-010 |
— | ||
|
13
|
13
90201-333-020
Washer,primary
|
90201-333-020 |
— | ||
|
14
|
14
91011-VM0-008 Brg,con-rod l.end |
91011-VM0-008 |
US $15.49 |
||
|
14
|
14
91012-VM0-008 Brg,con-rod l.end |
91012-VM0-008 |
US $15.49 |
||
|
14
|
14
91013-VM0-008 Brg,con-rod l.end |
91013-VM0-008 |
US $15.49 |
||
|
14
|
14
91013-357-003 Needle brg |
91013-357-003 |
from US $12.49 |
||
|
15
|
15
91015-357-003 Bearing 2 |
91015-357-003 |
from US $11.26 |
||
|
16
|
16
9460118000 Clip, piston pin, 18mm |
9460118000 |
from US $0.44 |
