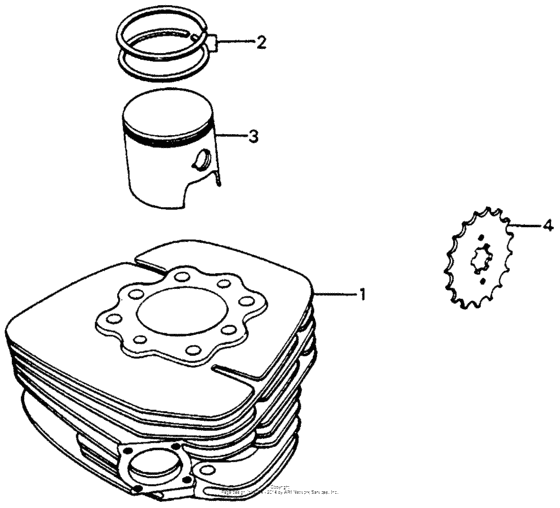

Piston + cylinder + sprocket Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-381-810
Cylinder
(Optional). |
12100-381-810 |
— | ||
|
2
|
2
13021-381-003
Ring set (os) (0.25)
(Optional). |
13021-381-003 |
— | ||
|
2
|
2
13031-381-003 Ring set (os) (0.50)(Optional). |
13031-381-003 |
US $50.29 |
||
|
2
|
2
13041-381-003 Ring set (os) (0.75)(Optional). |
13041-381-003 |
US $39.42 |
||
|
2
|
2
13051-381-003 Ring set (1.00)(Optional). |
13051-381-003 |
US $47.33 |
||
|
3
|
3
13102-395-000 Piston (os) (0.25)(Optional). |
13102-395-000 |
US $325.21 |
||
|
3
|
3
13103-395-000
Piston (os) (0.50)
(Optional). |
13103-395-000 |
— | ||
|
3
|
3
13104-395-000
Piston comp
(Optional). |
13104-395-000 |
— | ||
|
3
|
3
13105-395-000
Piston (1.00)
(Optional). |
13105-395-000 |
— | ||
|
4
|
4
23801-357-810 Sprocket,drive(Optional). |
23801-357-810 |
US $30.69 |
||
|
4
|
4
23803-357-810
Sprocket,drive
(Optional). |
23803-357-810 |
— |
