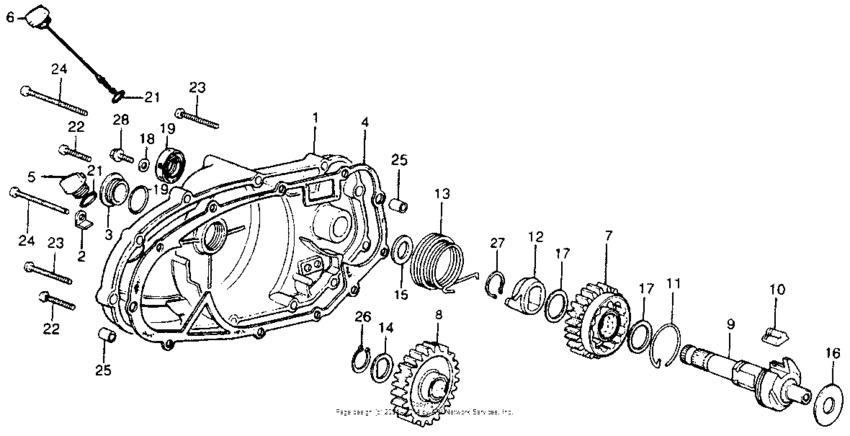

Right crankcase cover + kick starter Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11331-381-000
Cover, r. crankcase
|
11331-381-000 |
— | ||
|
2
|
2
11332-381-000
Stopper, brake arm
|
11332-381-000 |
— | ||
|
3
|
3
11335-357-000 Cap, clutch adjust |
11335-357-000 |
US $23.53 |
||
|
4
|
4
11394-357-306
Gasket, r
|
11394-357-306 |
— | ||
|
5
|
5
15611-381-000 Cap, oil filler |
15611-381-000 |
US $8.67 |
||
| replacement | |||||
|
5
|
5
25611-733-000 Cap, oil |
25611-733-000 |
from US $4.37 |
||
|
7
|
7
28210-357-020
Pinion,starter
|
28210-357-020 |
— | ||
|
8
|
8
28230-357-020
Gear, starter idle
|
28230-357-020 |
— | ||
|
9
|
9
28250-358-000
Spindle
|
28250-358-000 |
— | ||
|
10
|
10
28255-357-010
Pawl,starter
|
28255-357-010 |
— | ||
|
11
|
11
28258-357-020
Spring,pawl set
|
28258-357-020 |
— | ||
|
12
|
12
28259-357-020
Retainer, spring
|
28259-357-020 |
— | ||
|
13
|
13
28261-357-030
Spring,starter
|
28261-357-030 |
— | ||
|
14
|
14
90433-357-000
Washer,17mm
|
90433-357-000 |
— | ||
|
15
|
15
90451-357-000
Washer,18mm
|
90451-357-000 |
— | ||
|
16
|
16
90454-329-000
Washer,16mm
|
90454-329-000 |
— | ||
|
17
|
17
90456-703-000
Washer,thrust,22
|
90456-703-000 |
— | ||
|
18
|
18
90463-KRM-840 Washer (6.2mm) |
90463-KRM-840 |
from US $1.84 |
||
|
19
|
19
91204-286-003 Oil seal (18x29x7) |
91204-286-003 |
from US $4.20 |
||
|
20
|
20
91302-567-003 O-ring (27.4x2.4) |
91302-567-003 |
from US $2.66 |
||
|
20
|
20
91304-MG7-003 O-ring (27.4x2.4) |
91304-MG7-003 |
from US $5.03 |
||
|
21
|
21
91303-800-000 O-ring, 16mm |
91303-800-000 |
from US $2 |
||
|
21
|
21
91304-MJ0-003
O-ring, 15.8x2.4 (showa)
|
91304-MJ0-003 |
— | ||
| replacement | |||||
|
21
|
21
91303-800-000 O-ring, 16mm |
91303-800-000 |
from US $2 |
||
|
22
|
22
93500-060280A Screw, pan, 6x28 |
93500-060280A |
from US $0.52 |
||
|
23
|
23
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
24
|
24
93500-060-650-A Screw, pan (6x65) |
93500-060-650-A |
from US $0.74 |
||
|
25
|
25
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
26
|
26
9451017000 Circlip, external, 17mm |
9451017000 |
from US $0.52 |
||
|
27
|
27
94510-22000 CirclipEXTERNAL, 22MM |
94510-22000 |
from US $0.59 |
||
|
28
|
28
95701-060-100-0 BoltFLANGE, 6X10 Use up to Engine SN 1013758 |
95701-060-100-0 |
from US $0.52 |
||
