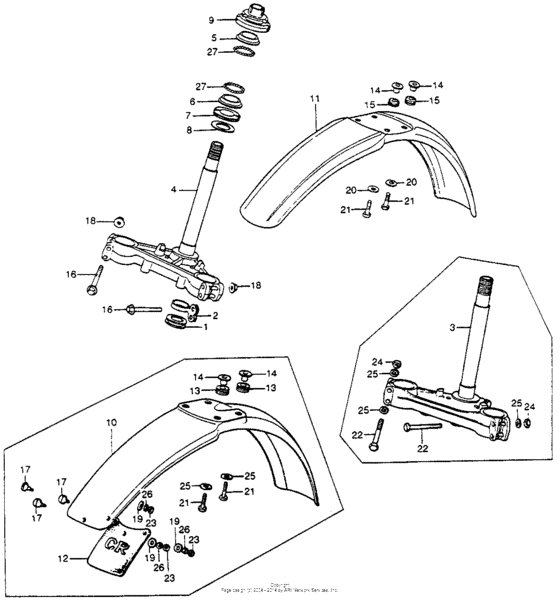

Steering stem + front fender Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45466-329-000 Guide, cable (inner) |
45466-329-000 |
from US $4.04 |
||
|
2
|
2
45468-357-000
Guide,brkt.cable
|
45468-357-000 |
— | ||
|
4
|
4
53200-381-000ZA
Stem, steering *a01*
|
53200-381-000ZA |
— | ||
|
5
|
5
53211-200-305
Race
|
53211-200-305 |
— | ||
|
6
|
6
53212-200-305 Race, steering cone |
53212-200-305 |
from US $24.14 |
||
|
7
|
7
53214-200-000 Dust seal |
53214-200-000 |
from US $2.14 |
||
|
8
|
8
53215-200-000 Washer |
53215-200-000 |
from US $1.82 |
||
|
9
|
9
53220-357-000
Thread,strg.head
|
53220-357-000 |
— | ||
|
11
|
11
61100-381-000
Fender,front
|
61100-381-000 |
— | ||
|
14
|
14
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
14
|
14
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
14
|
14
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
15
|
15
61315-358-000 Rubber,mount,22mm |
61315-358-000 |
from US $6.79 |
||
|
16
|
16
90127-369-000
Bolt, flange (8x54)
|
90127-369-000 |
— | ||
|
18
|
18
9405008020 Nut, flange, 8mm |
9405008020 |
from US $0.59 |
||
|
20
|
20
91412-538-000
Washer, flat (20mm)
|
91412-538-000 |
— | ||
|
21
|
21
92101-06022-0A BoltHEX., 6X22 |
92101-06022-0A |
from US $0.55 |
||
|
27
|
27
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
