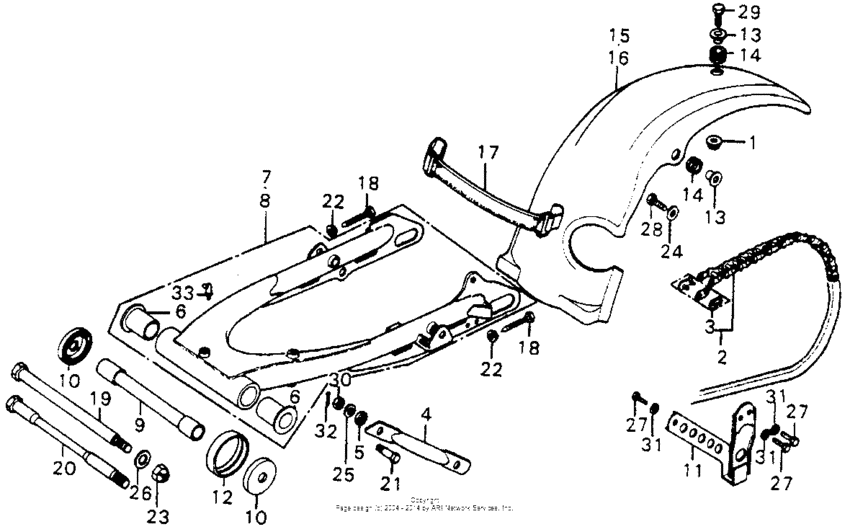

Swingarm + rear fender m1-76 Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
2
|
2
405W3-KA4-505
Chain, drive
|
405W3-KA4-505 |
— | ||
|
3
|
3
40531-958-003
Joint,drive chain
|
40531-958-003 |
— | ||
|
4
|
4
43431-381-000
Arm, rr.
|
43431-381-000 |
— | ||
|
5
|
5
43434-286-000 Rubber |
43434-286-000 |
from US $2.15 |
||
|
6
|
6
52108-457-300 Bush,rr.forkpivot |
52108-457-300 |
from US $33.56 |
||
|
7
|
7
52110-381-000
Swingarm assy., rr.
|
52110-381-000 |
— | ||
|
9
|
9
52141-381-000
Collar, rr.
|
52141-381-000 |
— | ||
|
10
|
10
52144-362-000 Cap,dust seal |
52144-362-000 |
US $16.59 |
||
|
11
|
11
52156-381-000
Guide, chain
|
52156-381-000 |
— | ||
|
12
|
12
52170-381-000
Sliper,chain
|
52170-381-000 |
— | ||
|
13
|
13
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
13
|
13
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
13
|
13
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
14
|
14
61315-358-000 Rubber,mount,22mm |
61315-358-000 |
from US $6.79 |
||
|
15
|
15
80100-381-000
Fender, rr.
|
80100-381-000 |
— | ||
|
17
|
17
80105-381-000
Band, fender mount
|
80105-381-000 |
— | ||
|
18
|
18
90119-300-000 Bolt,chain adjust |
90119-300-000 |
from US $5.77 |
||
|
20
|
20
90121-MG3-000
Bolt,rr.fork pivo
|
90121-MG3-000 |
— | ||
|
21
|
21
90133-286-000 Bolt, rr |
90133-286-000 |
from US $4.59 |
||
|
22
|
22
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
23
|
23
90354-268-000 Nut, self lock |
90354-268-000 |
from US $8.44 |
||
|
24
|
24
91412-538-000
Washer, flat (20mm)
|
91412-538-000 |
— | ||
|
25
|
25
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
26
|
26
90527-634-670
Wash,sub 14.5x2mm
|
90527-634-670 |
— | ||
|
27
|
27
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
27
|
27
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
27
|
27
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
28
|
28
92101-06022-0A BoltHEX., 6X22 |
92101-06022-0A |
from US $0.55 |
||
|
29
|
29
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
30
|
30
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
31
|
31
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
32
|
32
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
33
|
33
9620180000 Fitting (b.76s) |
9620180000 |
from US $1.85 |
||
