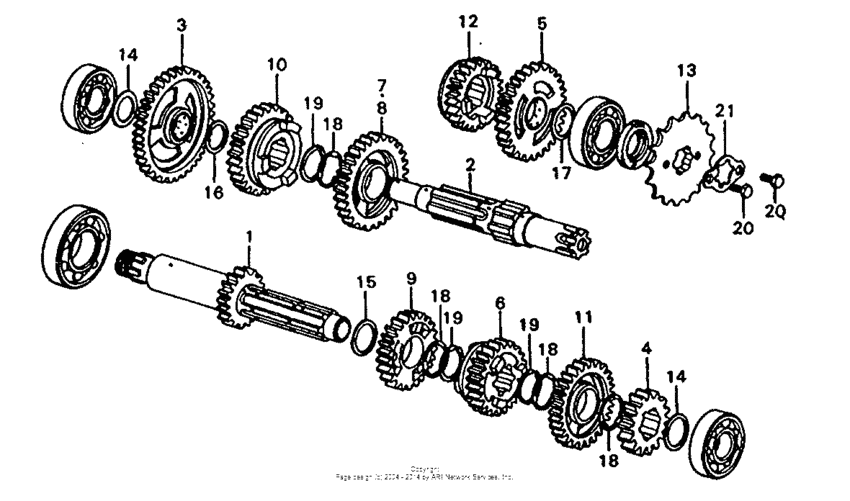

Transmission Diagram Honda CR250
- Model code
- CR250M1 A
- Sales region
- USA
- Frame
- CR250M2000001 - CR250M2005434
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23210-357-010
Mainshaft, trans
|
23210-357-010 |
— | ||
|
2
|
2
23221-357-040
Countershaft
|
23221-357-040 |
— | ||
|
3
|
3
23410-357-020
Gear (37t)
|
23410-357-020 |
— | ||
|
4
|
4
23421-357-010
Gear,m/shaft 2nd
|
23421-357-010 |
— | ||
|
5
|
5
23430-381-000
Gear,c2 33t
|
23430-381-000 |
— | ||
|
6
|
6
23441-381-000
Gear (24t)
|
23441-381-000 |
— | ||
|
7
|
7
23451-357-020
Gear (30t)
|
23451-357-020 |
— | ||
|
9
|
9
23461-357-040
Gear,m4
|
23461-357-040 |
— | ||
|
10
|
10
23471-381-000
Gear (27t)
|
23471-381-000 |
— | ||
|
11
|
11
23481-357-020
Gear,m/shaft 5th
|
23481-357-020 |
— | ||
|
12
|
12
23491-381-000
Gear,ct/shaft 5th
|
23491-381-000 |
— | ||
|
13
|
13
23801-362-000
Sprocket,drive
|
23801-362-000 |
— | ||
|
14
|
14
90446-357-000 Washer, thrust, 17.2mm |
90446-357-000 |
from US $3.40 |
||
|
15
|
15
90452-357-000 Washer (22mm) |
90452-357-000 |
from US $7.25 |
||
|
16
|
16
90457-357-000
Washer, thrust, 18.6mm
|
90457-357-000 |
— | ||
|
17
|
17
90459-700-000
Washer,thrust
|
90459-700-000 |
— | ||
|
18
|
18
90463-437-000 Washer (22mm) |
90463-437-000 |
from US $2.96 |
||
|
19
|
19
90601-329-000 Circlip (22mm) |
90601-329-000 |
from US $3.18 |
||
|
20
|
20
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
21
|
21
9501492100 Plate b, fixing |
9501492100 |
from US $0.81 |
