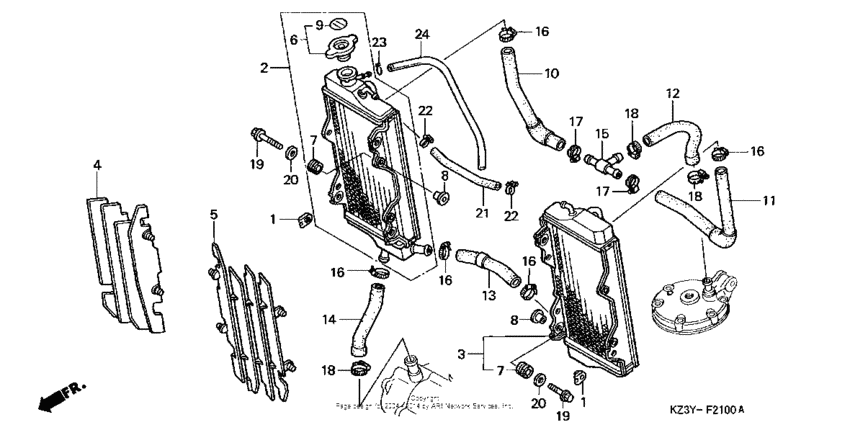

Radiator Diagram Honda CR250
- Year
- 2000
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME033*YM200001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18354-KS6-000 Nut, muffler spring |
18354-KS6-000 |
from US $4.29 |
||
|
2
|
2
19010-KZ3-J25 Radiator, r |
19010-KZ3-J25 |
US $288.65 |
||
|
3
|
3
19015-KZ3-J25 Radiator, l |
19015-KZ3-J25 |
US $252.03 |
||
|
4
|
4
19033-KZ4-J20 Grille, r. radiator |
19033-KZ4-J20 |
from US $35.13 |
||
|
5
|
5
19034-KZ4-J20 Grille, l. radiator |
19034-KZ4-J20 |
from US $35.13 |
||
|
6
|
6
19045-MZ1-621 Cap, radiator |
19045-MZ1-621 |
from US $20.25 |
||
|
7
|
7
19051-KA3-830 Rubber, radiator mounting |
19051-KA3-830 |
from US $1.89 |
||
|
8
|
8
19052-MAC-680 Collar |
19052-MAC-680 |
from US $3.63 |
||
|
9
|
9
19055-MV9-881 Seal, radiator cap |
19055-MV9-881 |
from US $4.74 |
||
|
10
|
10
19061-KZ3-J20
Hose a, water
|
19061-KZ3-J20 |
— | ||
|
11
|
11
19062-KZ3-J20
Hose b, water
|
19062-KZ3-J20 |
— | ||
|
12
|
12
19063-KZ3-J20
Hose c, water
|
19063-KZ3-J20 |
— | ||
|
13
|
13
19064-KZ3-J20
Hose, water
|
19064-KZ3-J20 |
— | ||
|
14
|
14
19067-KZ3-J20
Hose d, water
|
19067-KZ3-J20 |
— | ||
|
15
|
15
19069-KZ3-J50
Joint, water hose
|
19069-KZ3-J50 |
— | ||
|
16
|
16
19504-KY1-003 Clamp (25mm) |
19504-KY1-003 |
from US $6.81 |
||
|
17
|
17
19505-KS6-700 Clamp a, water hose |
19505-KS6-700 |
from US $7.65 |
||
|
18
|
18
19506-KS6-700 Clamp b, water hose |
19506-KS6-700 |
from US $7.70 |
||
|
19
|
19
90001-GB4-000 Bolt, flg (6x23.5) |
90001-GB4-000 |
from US $2.22 |
||
|
20
|
20
90506-430-000 Washer |
90506-430-000 |
from US $3.03 |
||
|
21
|
21
95001-750-0860M Bulk hose (7.5x8000) |
95001-750-0860M |
from US $76.16 |
||
|
22
|
22
95002-01130 ClipTUBE(A13) |
95002-01130 |
from US $1.40 |
||
|
23
|
23
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
24
|
24
95003-140-0110M Bulk hose (6x9x1000) |
95003-140-0110M |
from US $1.95 |
