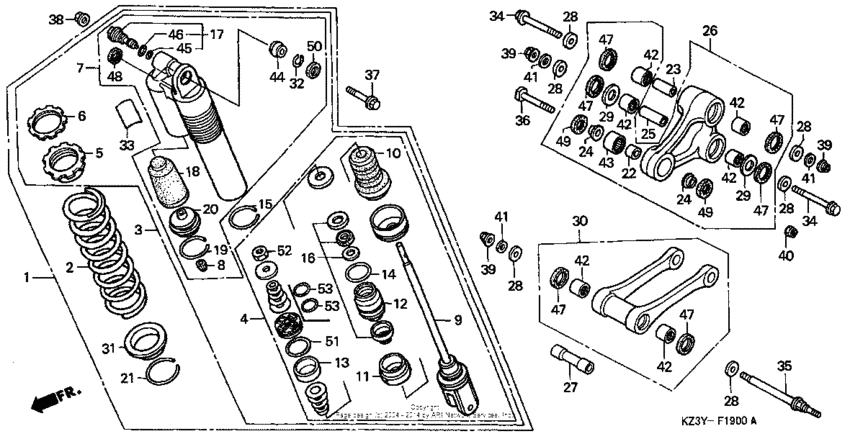

Rear shock absorber Diagram Honda CR250
- Year
- 2000
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME033*YM200001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-KZ3-A91 Cushion assy., rr. |
52400-KZ3-A91 |
US $986.22 |
||
|
2
|
2
52401-KZ3-J21 Spring, rr. (4.8) |
52401-KZ3-J21 |
US $185.42 |
||
|
2
|
2
52402-KZ3-J21 Spring, rr. (4.55)(Optional). |
52402-KZ3-J21 |
US $200.57 |
||
|
2
|
2
52403-KZ3-J21 Spring, rr. (4.95)(Optional). |
52403-KZ3-J21 |
US $137.89 |
||
|
2
|
2
52404-KZ3-J21 Spring, rr. (5.15)(Optional). |
52404-KZ3-J21 |
US $136.75 |
||
|
3
|
3
52410-KZ3-A91 Damper, rr. |
52410-KZ3-A91 |
US $768.52 |
||
|
4
|
4
52421-KZ3-A91
Rod, piston
|
52421-KZ3-A91 |
— | ||
|
5
|
5
52422-KZ3-J21
Adjuster, spring
|
52422-KZ3-J21 |
— | ||
|
6
|
6
52423-KZ3-J21 Nut, adjuster |
52423-KZ3-J21 |
from US $14.50 |
||
|
7
|
7
52425-KZ3-A91
Case, damper
|
52425-KZ3-A91 |
— | ||
|
8
|
8
52425-169-003 Cap, air valve |
52425-169-003 |
from US $2.59 |
||
|
9
|
9
52426-KZ3-J21 Rod |
52426-KZ3-J21 |
US $342.43 |
||
|
10
|
10
52427-KZ3-891 Rubber, stopper |
52427-KZ3-891 |
from US $13.17 |
||
|
11
|
11
52428-KZ3-J21
Plate, end
|
52428-KZ3-J21 |
— | ||
|
12
|
12
52429-KZ3-J21
Case, rod guide
|
52429-KZ3-J21 |
— | ||
|
13
|
13
52431-KZ3-J21 Ring, piston |
52431-KZ3-J21 |
from US $12.18 |
||
|
14
|
14
52434-KZ3-J21 O-ring (3.5x43.7) |
52434-KZ3-J21 |
from US $2.68 |
||
|
15
|
15
52435-KZ3-J21 Ring, stopper |
52435-KZ3-J21 |
from US $2.59 |
||
|
16
|
16
52436-KZ3-305 Oil seal set |
52436-KZ3-305 |
from US $26.79 |
||
|
17
|
17
52440-KZ3-A91
Adjuster
|
52440-KZ3-A91 |
— | ||
|
18
|
18
52451-KZ3-891 Bladder |
52451-KZ3-891 |
from US $17.95 |
||
|
19
|
19
52452-KS7-831 Ring, stopper |
52452-KS7-831 |
from US $2.59 |
||
|
20
|
20
52453-KS7-831 Cap, chamber |
52453-KS7-831 |
from US $31.68 |
||
|
21
|
21
52455-KZ3-J21 Ring, stopper |
52455-KZ3-J21 |
from US $6.22 |
||
|
22
|
22
52463-KZ4-B00 Collar d, shock |
52463-KZ4-B00 |
from US $3.92 |
||
|
23
|
23
52463-KZ4-J20
Collar c
|
52463-KZ4-J20 |
— | ||
|
24
|
24
52464-KZ4-B00 Collar d, shock side |
52464-KZ4-B00 |
from US $2.81 |
||
|
25
|
25
52464-KZ4-J20 Collar b, cushion |
52464-KZ4-J20 |
from US $8.14 |
||
|
26
|
26
52465-KZ4-J20
Arm sub-assy.
|
52465-KZ4-J20 |
— | ||
|
27
|
27
52473-KZ4-J20 Collar a, conn rod |
52473-KZ4-J20 |
from US $15.23 |
||
|
28
|
28
52475-KZ4-J20 Collar, link side |
52475-KZ4-J20 |
from US $7.99 |
||
|
29
|
29
52476-KZ4-J20 Washer, thrust |
52476-KZ4-J20 |
from US $6.53 |
||
|
30
|
30
52479-KZ4-J20
Rod sub-assy.
|
52479-KZ4-J20 |
— | ||
|
31
|
31
52486-KZ3-J21 Seat, spring |
52486-KZ3-J21 |
from US $16.73 |
||
|
32
|
32
52487-KA4-831 Ring, stopper |
52487-KA4-831 |
from US $2.74 |
||
|
33
|
33
87516-KZ1-600 Label, rr. |
87516-KZ1-600 |
from US $4.29 |
||
|
34
|
34
90130-KZ4-J20 Bolt, link (12x96) |
90130-KZ4-J20 |
from US $11.83 |
||
|
35
|
35
90131-KZ4-J20
Bolt, link (12x132)
|
90131-KZ4-J20 |
— | ||
|
36
|
36
90153-KZ4-710 Bolt (10x43.5) |
90153-KZ4-710 |
from US $4.07 |
||
|
37
|
37
90153-KK0-000 Bolt, flange (10x58) |
90153-KK0-000 |
from US $4.88 |
||
|
38
|
38
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
39
|
39
90306-KBP-901 Nut, hex. u (12mm) |
90306-KBP-901 |
from US $6.67 |
||
| replacement | |||||
|
39
|
39
90306-GAB-711 Nut,hex,12mm |
90306-GAB-711 |
from US $6.67 |
||
|
40
|
40
90306-KZ4-711 Nut, u (10mm) |
90306-KZ4-711 |
from US $3.26 |
||
|
41
|
41
90504-SF4-000 Washer, plain (12mm) |
90504-SF4-000 |
US $9.42 |
||
|
42
|
42
91053-KZ4-J21 Bearing (20x26x14) |
91053-KZ4-J21 |
from US $9.46 |
||
|
43
|
43
91074-KZ4-B01 Bearing (19x26x15) |
91074-KZ4-B01 |
from US $24.07 |
||
|
44
|
44
91074-MAC-741 Bearing (10) |
91074-MAC-741 |
from US $18.36 |
||
|
45
|
45
91256-KZ3-731 O-ring (21.5x1.5) |
91256-KZ3-731 |
from US $1.92 |
||
|
46
|
46
91257-KZ3-891 O-ring (26.2x1.9) |
91257-KZ3-891 |
from US $2.22 |
||
|
47
|
47
91262-KZ3-731 Dust seal (25x32x4) |
91262-KZ3-731 |
from US $5.76 |
||
|
48
|
48
91351-KZ3-731 Dust seal, shock |
91351-KZ3-731 |
from US $3.48 |
||
|
49
|
49
91351-KZ4-B01 Dust seal (17x26x3) |
91351-KZ4-B01 |
from US $3.77 |
||
|
50
|
50
91351-MAC-671 Dust seal (16x26x3) |
91351-MAC-671 |
from US $3.70 |
||
|
51
|
51
91351-MAE-003 O-ring (43.5x2.0) |
91351-MAE-003 |
from US $3.80 |
||
|
52
|
52
52438-KA4-741 Nut, hex. (12mm) |
52438-KA4-741 |
from US $2.41 |
||
