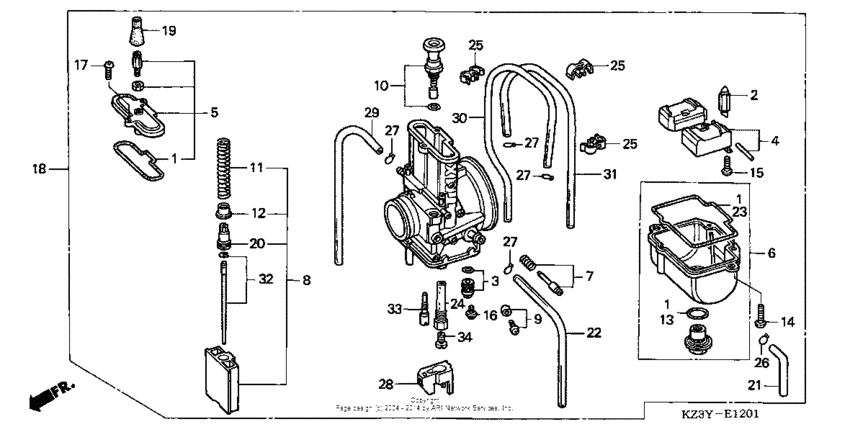

Carburetor (2) Diagram Honda CR250
- Year
- 2001
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME033*1M300001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-KZ4-A92 Gasket set |
16010-KZ4-A92 |
from US $20.40 |
||
|
2
|
2
16011-KZ4-A92 Valve, float |
16011-KZ4-A92 |
from US $31.42 |
||
|
3
|
3
16012-KZ4-A92 Valve set, seat |
16012-KZ4-A92 |
from US $9.32 |
||
|
4
|
4
16013-KZ4-A92
Float set
|
16013-KZ4-A92 |
— | ||
|
5
|
5
16014-KZ3-L12
Top set
|
16014-KZ3-L12 |
— | ||
|
6
|
6
16015-KZ4-A92
Chamber set, float
|
16015-KZ4-A92 |
— | ||
|
7
|
7
16016-KZ4-A92 Screw set a |
16016-KZ4-A92 |
US $18.46 |
||
|
8
|
8
16022-KZ3-L12
Valve set, throttle
|
16022-KZ3-L12 |
— | ||
|
9
|
9
16028-KZ4-A92 Screw set b |
16028-KZ4-A92 |
from US $6.22 |
||
|
10
|
10
16046-KZ4-A92 Valve set, starter |
16046-KZ4-A92 |
from US $37.94 |
||
|
11
|
11
16050-KZ4-A92
Spring
|
16050-KZ4-A92 |
— | ||
|
12
|
12
16066-KZ4-A92 Colr, spring setting |
16066-KZ4-A92 |
from US $1.97 |
||
|
13
|
13
16075-KZ4-A92 O-ring |
16075-KZ4-A92 |
US $4.31 |
||
|
14
|
14
16080-KZ4-A92 Screw, pan |
16080-KZ4-A92 |
from US $1.48 |
||
|
15
|
15
16081-KZ4-A92 Screw, pan |
16081-KZ4-A92 |
US $1.12 |
||
|
16
|
16
16082-KZ4-A92 Screw |
16082-KZ4-A92 |
from US $1.12 |
||
|
17
|
17
16083-KZ3-L12 Screw-washer |
16083-KZ3-L12 |
from US $1.86 |
||
|
18
|
18
16100-KZ3-L12
Carburetor assy.
|
16100-KZ3-L12 |
— | ||
|
19
|
19
16118-KZ4-A92 Cap, cable sealing |
16118-KZ4-A92 |
from US $6.85 |
||
|
20
|
20
16137-KZ4-A92
Holder, cable
|
16137-KZ4-A92 |
— | ||
|
21
|
21
16143-KZ3-L12
Tube, overflow
|
16143-KZ3-L12 |
— | ||
|
22
|
22
16144-KZ3-L12
Tube, air vent
|
16144-KZ3-L12 |
— | ||
|
23
|
23
16163-KZ4-A92 Gasket |
16163-KZ4-A92 |
US $14.96 |
||
|
24
|
24
16165-KZ3-L12
Nozzle, main
|
16165-KZ3-L12 |
— | ||
|
25
|
25
16179-KZ4-A92 Binder |
16179-KZ4-A92 |
from US $4.59 |
||
|
26
|
26
16181-KZ4-A92 Clip, tube |
16181-KZ4-A92 |
from US $1.33 |
||
|
27
|
27
16182-KZ4-A92 Clip, tube |
16182-KZ4-A92 |
from US $1.33 |
||
|
28
|
28
16185-KZ4-A92
Plate, buffer
|
16185-KZ4-A92 |
— | ||
|
29
|
29
16197-KZ3-L12
Tube, air vent
|
16197-KZ3-L12 |
— | ||
|
30
|
30
16198-KZ3-L12
Tube, air vent
|
16198-KZ3-L12 |
— | ||
|
31
|
31
16199-KZ3-L12
Tube, air vent
|
16199-KZ3-L12 |
— | ||
|
32
|
32
16204-KZ3-L12
Ndl, jet (6beh1-73)
|
16204-KZ3-L12 |
— | ||
|
33
|
33
99133-KZ30250 Jet, slow (#25)(Optional). |
99133-KZ30250 |
from US $6.51 |
||
|
33
|
33
99133-KZ30300 Jet, slow (#30)(Optional). |
99133-KZ30300 |
from US $6.51 |
||
|
33
|
33
99133-KZ3-0350 Jet, slow (#35) |
99133-KZ3-0350 |
from US $6.51 |
||
|
33
|
33
99133-KZ40400 Jet, slow (#40)(Optional). |
99133-KZ40400 |
US $14.72 |
||
|
33
|
33
99133-KZ40450 Jet, slow (#45)(Optional). |
99133-KZ40450 |
from US $6.51 |
||
|
34
|
34
99143-KZ44200 Jet, main (#420) |
99143-KZ44200 |
US $15.03 |
