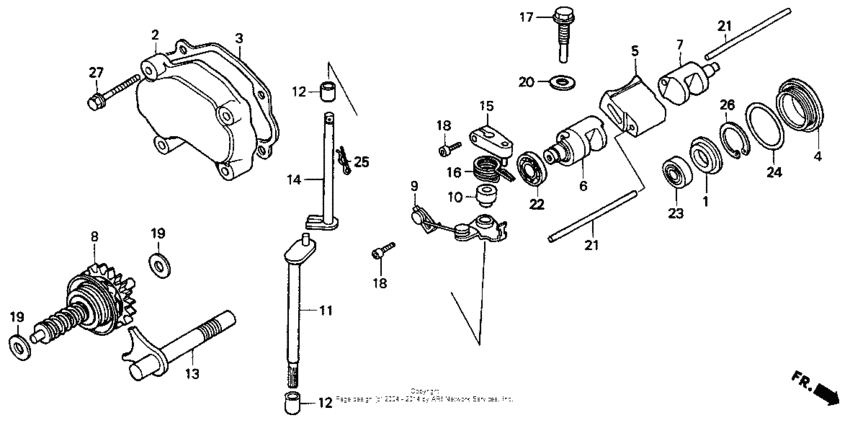

Exhaust valve Diagram Honda CR250
- Year
- 2001
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME033*1M300001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12104-KZ3-B10
Bush, ex. valve
|
12104-KZ3-B10 |
— | ||
|
2
|
2
12106-KZ3-860
Cover, r
|
12106-KZ3-860 |
— | ||
|
3
|
3
12108-KZ3-880 Gasket, r |
12108-KZ3-880 |
from US $5.77 |
||
|
4
|
4
12361-300-000 Cap, valve adj. |
12361-300-000 |
from US $13.04 |
||
|
5
|
5
14201-KZ3-J20
Valve, flap
|
14201-KZ3-J20 |
— | ||
|
6
|
6
14601-KZ3-J20
Valve, r. sub-ex.
|
14601-KZ3-J20 |
— | ||
|
7
|
7
14701-KZ3-J20
Valve, l. sub-ex.
|
14701-KZ3-J20 |
— | ||
|
8
|
8
19200-KZ3-J20
Governor
|
19200-KZ3-J20 |
— | ||
|
9
|
9
19300-KZ3-860
Rod, tie
|
19300-KZ3-860 |
— | ||
|
10
|
10
19301-KZ3-860
Collar, tie rod arm
|
19301-KZ3-860 |
— | ||
|
11
|
11
19350-KZ3-860
Shaft, pinion
|
19350-KZ3-860 |
— | ||
|
12
|
12
19355-KZ3-860 Bush, pinion shaft |
19355-KZ3-860 |
from US $6.33 |
||
|
13
|
13
19360-KZ3-J20
Rack, ex. valve
|
19360-KZ3-J20 |
— | ||
|
14
|
14
19370-KZ3-860 Shaft, valve drive |
19370-KZ3-860 |
from US $44.20 |
||
|
15
|
15
19520-KZ3-860
Holder
|
19520-KZ3-860 |
— | ||
|
16
|
16
19531-KZ3-690
Spring
|
19531-KZ3-690 |
— | ||
|
17
|
17
90027-KZ3-860
Bolt, flange (8x20)
|
90027-KZ3-860 |
— | ||
|
18
|
18
90089-KR0-000 Bolt, socket, 5x12 |
90089-KR0-000 |
from US $2.22 |
||
|
19
|
19
90465-422-000 Washer, thrust, 8mm |
90465-422-000 |
from US $3.63 |
||
|
20
|
20
90488-700-000 Washer a, 8mm |
90488-700-000 |
from US $1.01 |
||
|
21
|
21
90701-KZ3-860 Pin (5x85) |
90701-KZ3-860 |
from US $5.25 |
||
|
22
|
22
91007-KA3-740 Bearing (12x24x6) |
91007-KA3-740 |
from US $11.88 |
||
|
23
|
23
91011-KZ3-B11 Bearing (608zz) |
91011-KZ3-B11 |
from US $13.42 |
||
|
24
|
24
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
25
|
25
94251-08000 PinLOCK, 8MM |
94251-08000 |
from US $0.59 |
||
|
26
|
26
94520-28000 CirclipINTERNAL, 28MM |
94520-28000 |
from US $0.81 |
||
|
27
|
27
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
