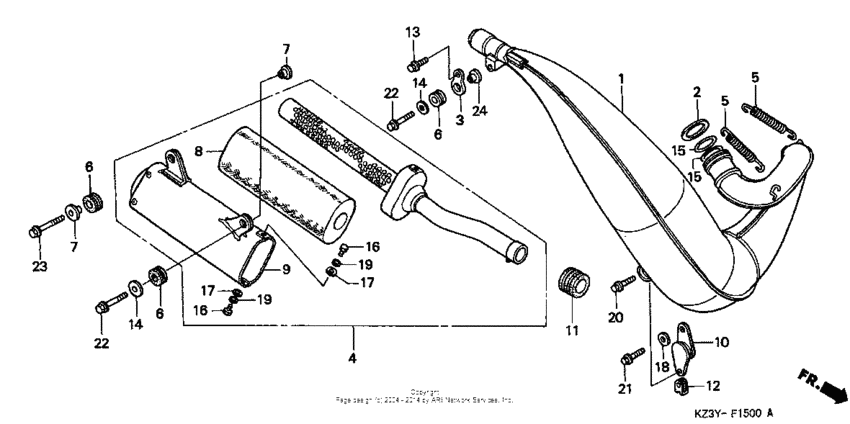

Expansion chamber Diagram Honda CR250
- Year
- 2001
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME033*1M300001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18300-KZ3-J30
Chamber, expansion
|
18300-KZ3-J30 |
— | ||
|
2
|
2
18309-KZ3-600 Washer (42x47.5) |
18309-KZ3-600 |
from US $7.10 |
||
|
3
|
3
18325-KS6-000 Stay, rr. chamber |
18325-KS6-000 |
from US $15 |
||
|
4
|
4
18330-KZ3-L10
Muffler
|
18330-KZ3-L10 |
— | ||
|
5
|
5
18332-KZ3-710 Spring, ex. pipe |
18332-KZ3-710 |
from US $7.70 |
||
|
6
|
6
18334-KA3-830 Rubber, muffler |
18334-KA3-830 |
from US $2.07 |
||
|
7
|
7
18336-KS6-700 Collar, muff mt |
18336-KS6-700 |
from US $6.07 |
||
|
8
|
8
18340-KZ3-680 Wool, glass |
18340-KZ3-680 |
US $42.43 |
||
|
9
|
9
18350-KZ3-L10
Body, muffler
|
18350-KZ3-L10 |
— | ||
|
10
|
10
18355-KZ3-B00 Stay, chamber |
18355-KZ3-B00 |
from US $14.96 |
||
|
11
|
11
18365-KA4-730 Rubber |
18365-KA4-730 |
from US $10.91 |
||
|
13
|
13
90102-KS6-000 Bolt-washer (6x16) |
90102-KS6-000 |
from US $5.77 |
||
|
14
|
14
90506-430-000 Washer |
90506-430-000 |
from US $3.03 |
||
|
15
|
15
91304-KZ3-890 O-ring (43x3) |
91304-KZ3-890 |
from US $12.73 |
||
|
16
|
16
92301-05010-0A Bolt (5x10) |
92301-05010-0A |
from US $0.44 |
||
|
17
|
17
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
18
|
18
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
||
|
19
|
19
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
20
|
20
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
21
|
21
90102-KS6-000 Bolt-washer (6x16) |
90102-KS6-000 |
from US $5.77 |
||
|
22
|
22
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
23
|
23
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
24
|
24
18336-KZ3-J30 Collar |
18336-KZ3-J30 |
from US $5.92 |
