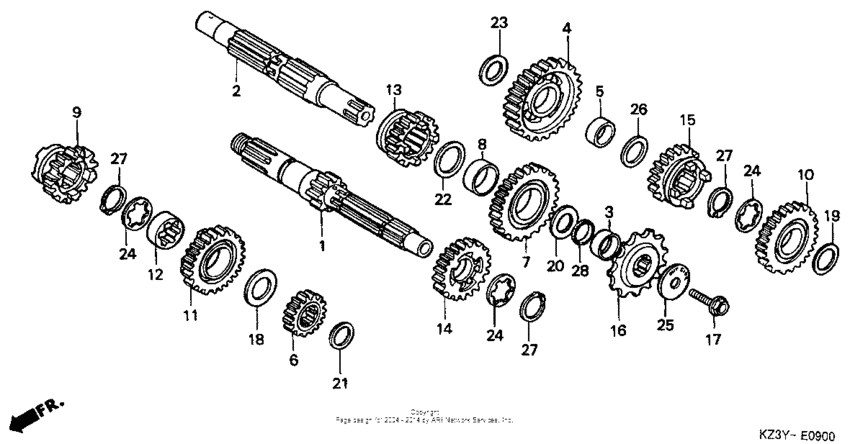

Transmission Diagram Honda CR250
- Year
- 2001
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME033*1M300001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23210-KZ3-J20
Shaft, main (15t)
|
23210-KZ3-J20 |
— | ||
|
2
|
2
23221-KZ3-J00
Countershaft
|
23221-KZ3-J00 |
— | ||
|
3
|
3
23225-MEN-730 Collar, countershaft |
23225-MEN-730 |
from US $15.50 |
||
|
4
|
4
23411-KS7-000 Gear (27t) |
23411-KS7-000 |
from US $116.86 |
||
|
5
|
5
23412-KA4-740 COLLAR, COUNTERSHAFT LOW GEAR |
23412-KA4-740 |
from US $12.03 |
||
|
6
|
6
23421-KA4-740
Gear (17t)
|
23421-KA4-740 |
— | ||
|
7
|
7
23431-KZ3-L30 GEAR, COUNTERSHAFT SECOND (25T) |
23431-KZ3-L30 |
from US $60.32 |
||
|
8
|
8
23432-ML3-870 COLLAR, COUNTERSHAFT 2ND GEAR |
23432-ML3-870 |
from US $12.14 |
||
|
9
|
9
23441-KZ3-J20
Gear (19t)
|
23441-KZ3-J20 |
— | ||
|
10
|
10
23451-KS7-830 GEAR, COUNTERSHAFT THIRD (23T) |
23451-KS7-830 |
US $157.87 |
||
|
11
|
11
23461-KZ3-L20 GEAR, MAINSHAFT FOURTH (21T) |
23461-KZ3-L20 |
from US $86.77 |
||
|
12
|
12
23462-KA4-000
Collar
|
23462-KA4-000 |
— | ||
|
13
|
13
23471-KZ3-860
Gear (21t)
|
23471-KZ3-860 |
— | ||
|
14
|
14
23481-KS7-000
Gear (23t)
|
23481-KS7-000 |
— | ||
|
15
|
15
23491-KZ3-000
Gear (20t)
|
23491-KZ3-000 |
— | ||
|
16
|
16
23802-MEN-730 SPROCKET, DRIVE (13T) |
23802-MEN-730 |
from US $45.29 |
||
|
17
|
17
90112-413-000 Bolt, ubs, 8x33 |
90112-413-000 |
from US $4.59 |
||
|
18
|
18
90421-961-000 Washer (25mm) |
90421-961-000 |
from US $6.22 |
||
|
19
|
19
90444-430-000 Washer, thrust, 25.2x30 |
90444-430-000 |
from US $4 |
||
|
20
|
20
90445-ML3-871 Washer (24.1x36x1.5) |
90445-ML3-871 |
from US $3.70 |
||
|
21
|
21
90446-KA4-740 Washer (17.2mm) |
90446-KA4-740 |
from US $6.22 |
||
|
22
|
22
90446-ML3-870 Washer (27.2x35) |
90446-ML3-870 |
from US $3.11 |
||
|
23
|
23
90446-357-000 Washer, thrust, 17.2mm |
90446-357-000 |
from US $3.40 |
||
|
24
|
24
90463-430-000 Washer (25mm) |
90463-430-000 |
from US $4.88 |
||
|
25
|
25
90501-HB9-003 Washer (8x40) |
90501-HB9-003 |
from US $3.03 |
||
|
26
|
26
90554-KA5-680 Washer (19mm) |
90554-KA5-680 |
from US $2.74 |
||
|
27
|
27
90602-259-010 Circlip (25mm) |
90602-259-010 |
from US $3.85 |
||
|
28
|
28
91201-ML3-873 O-ring (23.75mm) |
91201-ML3-873 |
from US $3.11 |
