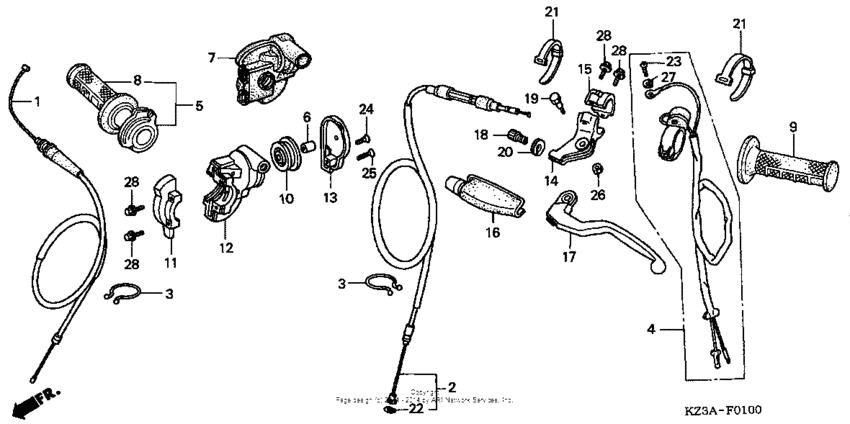

Handle lever + switch + cable ('02-'03) Diagram Honda CR250
- Year
- 2002
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME033*2M400001 - JH2ME033*2M499999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-KZ3-J41 Cable, throttle |
17910-KZ3-J41 |
from US $28.14 |
||
|
2
|
2
22870-KZ3-J40 Cable, clutch |
22870-KZ3-J40 |
from US $23.65 |
||
|
3
|
3
32171-GF9-621 Clip, purse lock |
32171-GF9-621 |
from US $2.37 |
||
|
4
|
4
35130-KZ3-L30 Switch assy., stop |
35130-KZ3-L30 |
from US $33.25 |
||
|
5
|
5
53140-KZ4-J31 Grip, throttle |
53140-KZ4-J31 |
from US $29.78 |
||
|
6
|
6
53163-MAC-670 Collar b, housing |
53163-MAC-670 |
from US $4.44 |
||
|
7
|
7
53164-MAC-680 Cover |
53164-MAC-680 |
from US $17 |
||
|
8
|
8
53165-KPT-305 Grip, r. handle |
53165-KPT-305 |
from US $12.53 |
||
|
9
|
9
53166-GBF-J60 Grip, l. handle |
53166-GBF-J60 |
US $12.88 |
||
| replacement | |||||
|
9
|
9
53166-KPT-305 Grip, l. handle |
53166-KPT-305 |
from US $12.53 |
||
|
10
|
10
53166-ML3-600 Roller |
53166-ML3-600 |
from US $6.22 |
||
|
11
|
11
53167-KZ4-J00 Housing a, grip |
53167-KZ4-J00 |
from US $22.30 |
||
|
12
|
12
53168-KZ4-J00 Housing b, grip |
53168-KZ4-J00 |
from US $24.62 |
||
|
13
|
13
53169-KZ4-J00 Cover b, housing |
53169-KZ4-J00 |
from US $11.84 |
||
|
14
|
14
53172-KAE-730 Bracket, l |
53172-KAE-730 |
from US $42.55 |
||
|
15
|
15
53174-KCE-670 Holder, l |
53174-KCE-670 |
from US $14.15 |
||
|
16
|
16
53177-430-000 Cover, l. handlebar |
53177-430-000 |
from US $13.41 |
||
|
17
|
17
53178-MAC-740 Lever, l. handlebar |
53178-MAC-740 |
from US $14.27 |
||
| replacement | |||||
|
17
|
17
53178-KSE-305 Lever, l. handlebar |
53178-KSE-305 |
from US $18.39 |
||
|
18
|
18
53192-KA3-700 Bolt |
53192-KA3-700 |
from US $9.95 |
||
|
19
|
19
90114-428-870 Bolt |
90114-428-870 |
from US $3.80 |
||
|
20
|
20
90321-KF0-000 Nut, fixing |
90321-KF0-000 |
from US $11.90 |
||
|
21
|
21
90650-KV6-003 BandWIRE, 95MM |
90650-KV6-003 |
from US $3.03 |
||
|
22
|
22
91357-KA4-004 O-ring (5.8x1.9) |
91357-KA4-004 |
from US $3.48 |
||
|
23
|
23
93500-040-120-A ScrewPAN, 4X12 |
93500-040-120-A |
from US $0.37 |
||
|
24
|
24
93700-040200A Screw, oval (4x20) |
93700-040200A |
from US $0.37 |
||
|
25
|
25
93700-040250A Screw, oval (4x25) |
93700-040250A |
from US $0.37 |
||
|
26
|
26
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
27
|
27
94111-04000 WasherSPRING, 4MM |
94111-04000 |
from US $0.37 |
||
|
28
|
28
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
||
