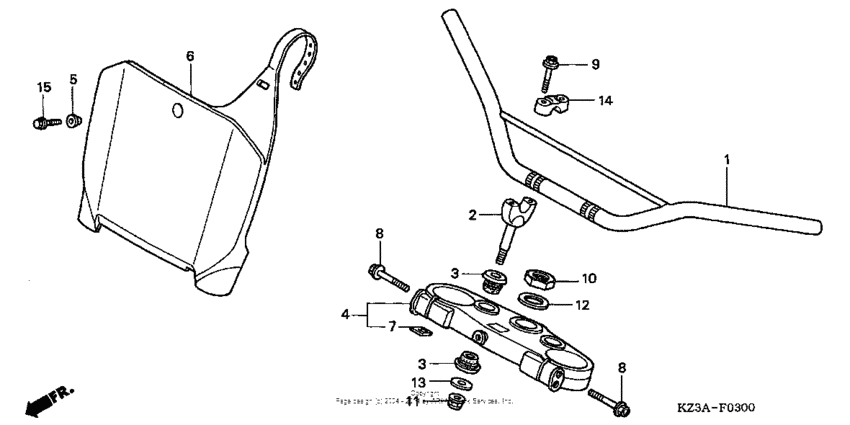

Handlebar + top bridge ('02-'03) Diagram Honda CR250
- Year
- 2002
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME033*2M400001 - JH2ME033*2M499999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53100-KZ4-J40ZA
Handlebar *nh262m*
|
53100-KZ4-J40ZA |
— | ||
|
2
|
2
53132-KA3-831 Holder, handle |
53132-KA3-831 |
from US $22.28 |
||
|
2
|
2
53132-KZ4-J20 Holder, handle(Optional). |
53132-KZ4-J20 |
from US $21.22 |
||
|
3
|
3
53133-KA3-832 Cushion, handlebar |
53133-KA3-832 |
from US $3.27 |
||
|
4
|
4
53300-KZ4-J20 Bridge, fork top |
53300-KZ4-J20 |
US $176.01 |
||
|
5
|
5
61101-441-000 Collar, fr |
61101-441-000 |
from US $3.83 |
||
|
6
|
6
61136-MEB-770ZA
Plate, fr. *nh196*
|
61136-MEB-770ZA |
— | ||
|
7
|
7
86150-MN8-300 Emblem, wing mark |
86150-MN8-300 |
from US $10.80 |
||
|
8
|
8
90107-KZ4-J40 Bolt, flange (8x45) |
90107-KZ4-J40 |
from US $2.89 |
||
|
9
|
9
90124-KZ4-J40 Bolt, flange (8x35) |
90124-KZ4-J40 |
from US $2.59 |
||
|
10
|
10
90304-KZ4-J30 Nut, steering stem |
90304-KZ4-J30 |
from US $8.88 |
||
|
11
|
11
90306-KZ4-711 Nut, u (10mm) |
90306-KZ4-711 |
from US $3.26 |
||
|
12
|
12
90503-KZ4-J40 Washer |
90503-KZ4-J40 |
from US $2.15 |
||
|
13
|
13
90507-KA3-830 Washer, plain (10mm) |
90507-KA3-830 |
from US $1.80 |
||
|
14
|
14
95014-22100 Holder b1, handlebar |
95014-22100 |
from US $7.70 |
||
|
15
|
15
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
