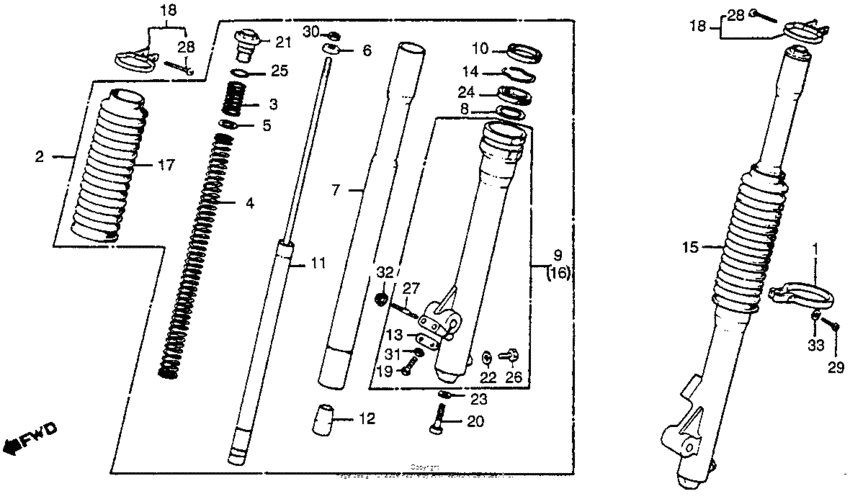

Front fork 78 Diagram Honda CR250
- Year
- 1978
- Model code
- CR250R A
- Sales region
- USA
- Frame
- CR250R2000014 - CR250R2006133
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45046-430-000
Clamp, fr. brake
|
45046-430-000 |
— | ||
|
2
|
2
51400-430-020
Fork assy., r. fr.
|
51400-430-020 |
— | ||
|
3
|
3
51401-430-010
Sprg a.fr cus
|
51401-430-010 |
— | ||
|
4
|
4
51402-430-000
Sprg b.fr cus
|
51402-430-000 |
— | ||
|
4
|
4
51402-430-810
Spring b, fr. fork
(Optional). |
51402-430-810 |
— | ||
|
5
|
5
51403-430-000 Plate,spg. joint |
51403-430-000 |
US $5.76 |
||
|
6
|
6
51407-430-000
Seart,spring un.
|
51407-430-000 |
— | ||
|
7
|
7
51410-430-010
Pipe, fr. fork
|
51410-430-010 |
— | ||
|
8
|
8
51412-371-003
Ring, back up
|
51412-371-003 |
— | ||
|
9
|
9
51421-430-010
Case, r. (lower)
|
51421-430-010 |
— | ||
|
10
|
10
51425-430-000
Dust seal,fr,fork
|
51425-430-000 |
— | ||
|
11
|
11
51430-430-010
Damper
|
51430-430-010 |
— | ||
|
12
|
12
51432-430-000
Piece, oil locking
|
51432-430-000 |
— | ||
|
13
|
13
51457-430-000
Washer, fr. fork
|
51457-430-000 |
— | ||
|
14
|
14
51447-KL4-951 Ring |
51447-KL4-951 |
from US $2.66 |
||
|
15
|
15
51500-430-010
Fork Assy., L. Fr.
|
51500-430-010 |
— | ||
|
16
|
16
51521-430-000
Case, l. (lower)
|
51521-430-000 |
— | ||
|
17
|
17
51611-430-000
Boot,fr.fork
|
51611-430-000 |
— | ||
|
18
|
18
51612-430-010 Band, fr. fork boot |
51612-430-010 |
from US $7.31 |
||
|
19
|
19
90104-430-000
Bolt,r.bot.case
|
90104-430-000 |
— | ||
|
20
|
20
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
21
|
21
90123-430-000
Bolt,fr.fork
|
90123-430-000 |
— | ||
|
22
|
22
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
23
|
23
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
24
|
24
51495-467-405 Oil seal set |
51495-467-405 |
from US $22.40 |
||
|
25
|
25
91344-PC9-004 O-ring29X2.4 (NOK) |
91344-PC9-004 |
from US $2.44 |
||
|
26
|
26
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
27
|
27
92900-06028-0B BoltSTUD, 6X28 |
92900-06028-0B |
from US $0.59 |
||
|
28
|
28
93500-030250A Screw, pan, 3x25 |
93500-030250A |
from US $0.37 |
||
|
29
|
29
93500-040-200-H ScrewPAN, 4X20 |
93500-040-200-H |
from US $0.37 |
||
|
30
|
30
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
31
|
31
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
32
|
32
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
33
|
33
94101-04800 WasherPLAIN, 4MM |
94101-04800 |
from US $0.37 |
