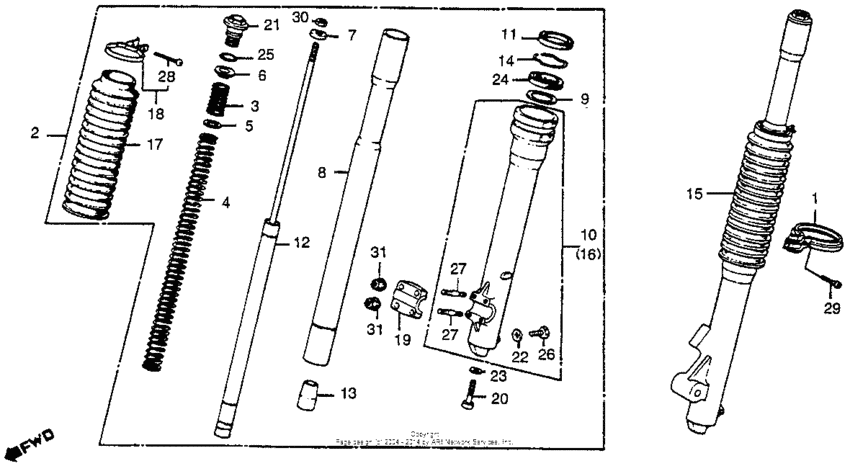

Front fork 79 Diagram Honda CR250
- Year
- 1979
- Model code
- CR250R A
- Sales region
- USA
- Frame
- CR250R2100006 - CR250R2111237
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45461-430-701
Clamper,fr.brake
|
45461-430-701 |
— | ||
|
2
|
2
51400-430-700
Fork assy., r. fr.
|
51400-430-700 |
— | ||
|
3
|
3
51401-430-010
Sprg a.fr cus
|
51401-430-010 |
— | ||
|
4
|
4
51402-430-700
Sprg.b fr cus
|
51402-430-700 |
— | ||
|
5
|
5
51403-430-000 Plate,spg. joint |
51403-430-000 |
US $5.76 |
||
|
6
|
6
51406-430-700
Seat,spring upper
|
51406-430-700 |
— | ||
|
7
|
7
51407-430-000
Seart,spring un.
|
51407-430-000 |
— | ||
|
8
|
8
51410-430-010
Pipe, fr. fork
|
51410-430-010 |
— | ||
|
9
|
9
51412-371-003
Ring, back up
|
51412-371-003 |
— | ||
|
10
|
10
51421-430-700
Case, r. (lower)
|
51421-430-700 |
— | ||
|
11
|
11
51425-430-000
Dust seal,fr,fork
|
51425-430-000 |
— | ||
|
12
|
12
51430-430-700
Damper comp
|
51430-430-700 |
— | ||
|
13
|
13
51432-430-000
Piece, oil locking
|
51432-430-000 |
— | ||
|
14
|
14
51447-KL4-951 Ring |
51447-KL4-951 |
from US $2.66 |
||
|
15
|
15
51500-430-700
Fork Assy., L. Fr.
|
51500-430-700 |
— | ||
|
16
|
16
51521-430-700
Case,l.bottom
|
51521-430-700 |
— | ||
|
17
|
17
51611-430-000
Boot,fr.fork
|
51611-430-000 |
— | ||
|
18
|
18
51612-430-010 Band, fr. fork boot |
51612-430-010 |
from US $7.31 |
||
|
19
|
19
51634-429-000
Holder,axle
|
51634-429-000 |
— | ||
|
20
|
20
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
21
|
21
90123-430-000
Bolt,fr.fork
|
90123-430-000 |
— | ||
|
22
|
22
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
23
|
23
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
24
|
24
51495-467-405 Oil seal set |
51495-467-405 |
from US $22.40 |
||
|
25
|
25
91344-PC9-004 O-ring29X2.4 (NOK) |
91344-PC9-004 |
from US $2.44 |
||
|
26
|
26
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
27
|
27
92900-06025-0E Bolt, stud (6x25) |
92900-06025-0E |
from US $0.59 |
||
|
28
|
28
93500-030250A Screw, pan, 3x25 |
93500-030250A |
from US $0.37 |
||
|
29
|
29
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
30
|
30
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
31
|
31
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
