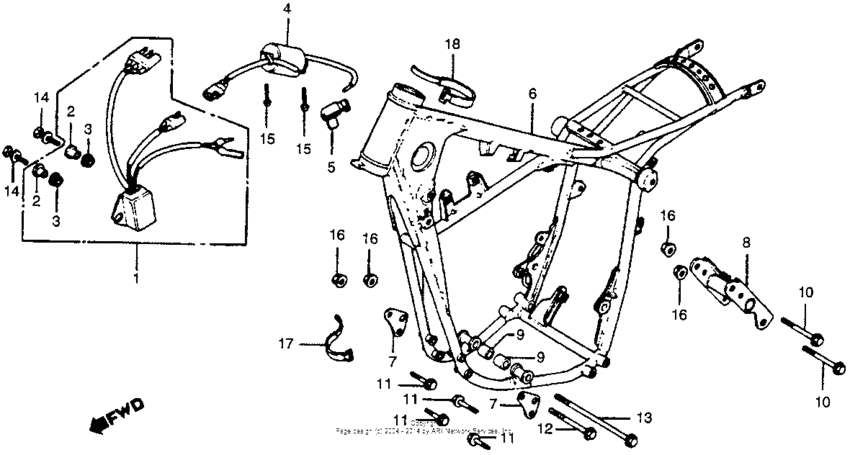

Frame + ignition coil 80 Diagram Honda CR250
- Year
- 1980
- Model code
- CR250R A
- Sales region
- USA
- Frame
- ME032001031 - ME032016050
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30400-467-003
C d i unit
|
30400-467-003 |
— | ||
|
2
|
2
30410-467-000
Collar
|
30410-467-000 |
— | ||
|
3
|
3
30420-467-000
Rubber, cushion
|
30420-467-000 |
— | ||
|
4
|
4
30500-467-000
Coil ignition
|
30500-467-000 |
— | ||
|
5
|
5
30700-360-701
Cap,plug
|
30700-360-701 |
— | ||
|
6
|
6
50100-467-010ZA
Frame *r23*
|
50100-467-010ZA |
— | ||
|
7
|
7
50351-467-000
Bracket, fr. eng hgr
|
50351-467-000 |
— | ||
|
8
|
8
50354-430-000ZA
Brkt, rr. eng *r23*
|
50354-430-000ZA |
— | ||
|
9
|
9
50358-467-000
Collar (22x22)
|
50358-467-000 |
— | ||
|
10
|
10
90102-430-000
Bolt,hex.,10x90
|
90102-430-000 |
— | ||
|
11
|
11
90104-467-000
Bolt, flange (8x32)
|
90104-467-000 |
— | ||
|
12
|
12
90108-430-000
Bolt hex 10x75
|
90108-430-000 |
— | ||
|
13
|
13
90109-467-000
Bolt, hex. (10x220)
|
90109-467-000 |
— | ||
|
14
|
14
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.58 |
||
|
15
|
15
93500-050-200-H ScrewPAN, 5X20 |
93500-050-200-H |
from US $0.37 |
||
|
16
|
16
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
17
|
17
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.76 |
||
|
18
|
18
9501461300 Band a3, cable |
9501461300 |
from US $1.24 |
