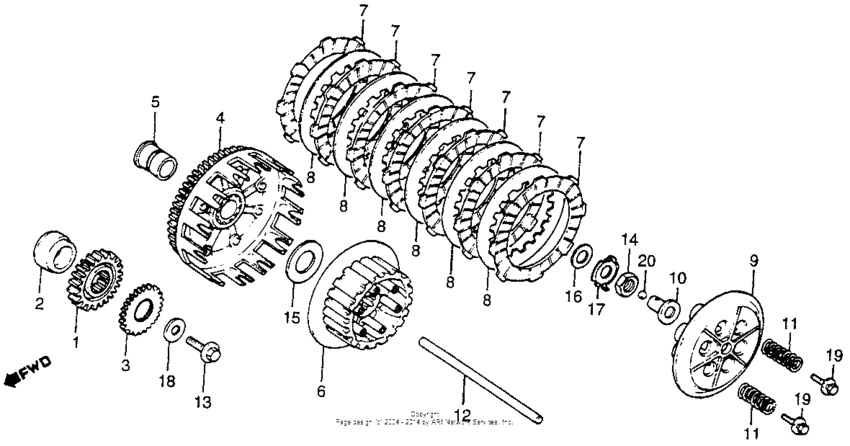

Clutch 81 Diagram Honda CR250
- Year
- 1981
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*BC300025 - JH2ME030*BC305412
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13615-KA4-000
Gear (20t)
|
13615-KA4-000 |
— | ||
|
2
|
2
13617-KA4-000
Collar,drive gear
|
13617-KA4-000 |
— | ||
|
3
|
3
19231-KA4-000
Gear,pump drive
|
19231-KA4-000 |
— | ||
|
4
|
4
22100-KA4-000
Outer,clutch
|
22100-KA4-000 |
— | ||
|
5
|
5
22116-KA4-305
Bush,clch.outer
|
22116-KA4-305 |
— | ||
|
6
|
6
22120-KA4-000
Clutch,center
|
22120-KA4-000 |
— | ||
|
7
|
7
22201-286-010 Disk clutch |
22201-286-010 |
from US $15.57 |
||
|
8
|
8
22321-KA4-700 Plate b,clutch |
22321-KA4-700 |
from US $15.78 |
||
|
8
|
8
22321-357-010 Plate b,clutch |
22321-357-010 |
from US $16.98 |
||
| replacement | |||||
|
8
|
8
22321-KA4-700 Plate b,clutch |
22321-KA4-700 |
from US $15.78 |
||
|
9
|
9
22351-KA4-700
Pl,clutch pressur
|
22351-KA4-700 |
— | ||
|
10
|
10
22352-KA4-000
Piece, clutch lifter
|
22352-KA4-000 |
— | ||
|
11
|
11
22401-KA4-700
Spring,clutch
|
22401-KA4-700 |
— | ||
|
12
|
12
22851-KA4-000
Rod,clutch lift
|
22851-KA4-000 |
— | ||
|
13
|
13
90013-430-000 Bolt, special, 10x25 |
90013-430-000 |
from US $6.36 |
||
|
14
|
14
90235-KA4-000 Nut (18mm) |
90235-KA4-000 |
from US $6.07 |
||
|
15
|
15
90451-KA4-000
Washer,thrust
|
90451-KA4-000 |
— | ||
|
16
|
16
90456-KA4-000 Washer (18x32) |
90456-KA4-000 |
from US $3.18 |
||
|
17
|
17
90461-MAC-740 Washer, lock (18mm) |
90461-MAC-740 |
US $9.81 |
||
|
18
|
18
90481-430-000 Washer, spring, 10mm |
90481-430-000 |
from US $5.33 |
||
|
19
|
19
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
20
|
20
96211-09000 BallSTEEL, #9 (9/32) |
96211-09000 |
from US $0.22 |
||
