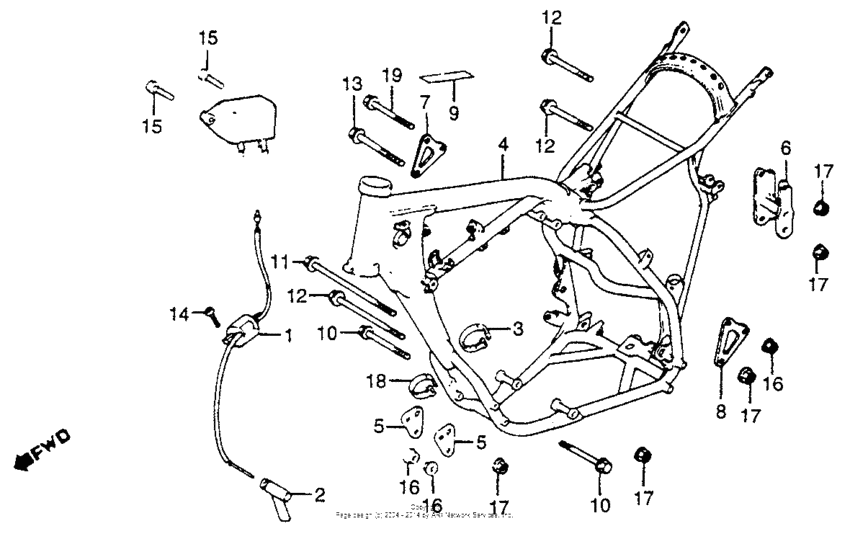

Frame + ignition coil 81 Diagram Honda CR250
- Year
- 1981
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*BC300025 - JH2ME030*BC305412
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30500-KA4-710
Coil,ignition
|
30500-KA4-710 |
— | ||
|
2
|
2
30700-KA5-771 Cap assy. |
30700-KA5-771 |
from US $23.13 |
||
|
3
|
3
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
4
|
4
50100-KA4-000ZA
Frame *r23*
|
50100-KA4-000ZA |
— | ||
|
5
|
5
50351-KA4-000
Pl,eng hanger
|
50351-KA4-000 |
— | ||
|
6
|
6
50354-KA4-000ZA
Brkt,rr eng*r-23*
|
50354-KA4-000ZA |
— | ||
|
7
|
7
50401-KA4-000
Brkt,r head hang
|
50401-KA4-000 |
— | ||
|
8
|
8
50402-KA4-000
Brkt,l head hang
|
50402-KA4-000 |
— | ||
|
9
|
9
87508-KA4-670
Label
|
87508-KA4-670 |
— | ||
|
10
|
10
90105-KA4-000
Bolt,flang 8x55
|
90105-KA4-000 |
— | ||
|
11
|
11
90107-KA4-000 Bolt,flange10x182 |
90107-KA4-000 |
US $11.12 |
||
|
12
|
12
90108-KA4-000 Bolt,flange,10x85 |
90108-KA4-000 |
US $7.55 |
||
|
13
|
13
90131-KA4-000 Bolt,flange 10x53 |
90131-KA4-000 |
US $4.93 |
||
|
14
|
14
93500-050-160-H ScrewPAN, 5X16 |
93500-050-160-H |
from US $0.37 |
||
|
15
|
15
93500-060200H Screw, pan (6x20) |
93500-060200H |
from US $0.47 |
||
|
16
|
16
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
17
|
17
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
18
|
18
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
19
|
19
95801-080-450-8 BoltFLANGE, 8X45 |
95801-080-450-8 |
from US $0.81 |
