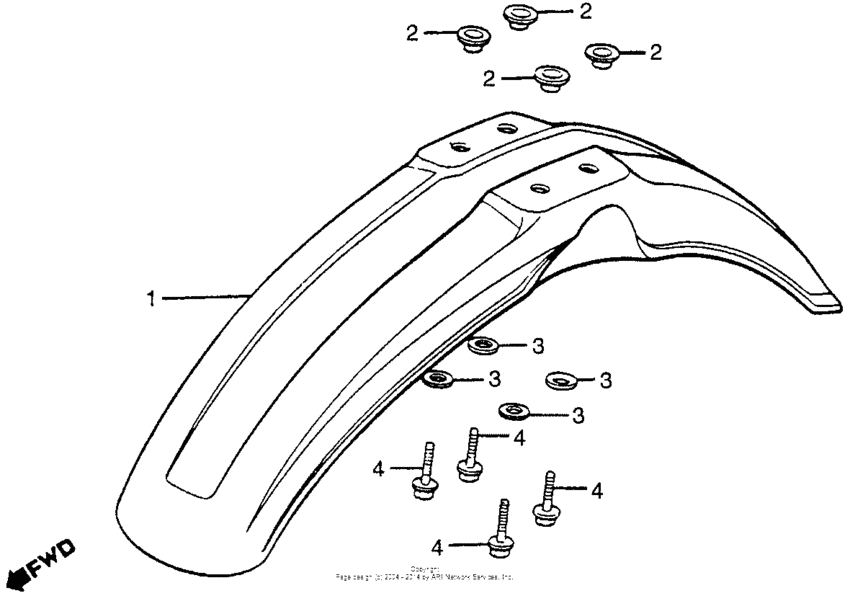

Front fender Diagram Honda CR250
- Year
- 1981
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*BC300025 - JH2ME030*BC305412
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61100-KA4-305ZA
Fender,front*r23*
|
61100-KA4-305ZA |
— | ||
|
2
|
2
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
3
|
3
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
4
|
4
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
