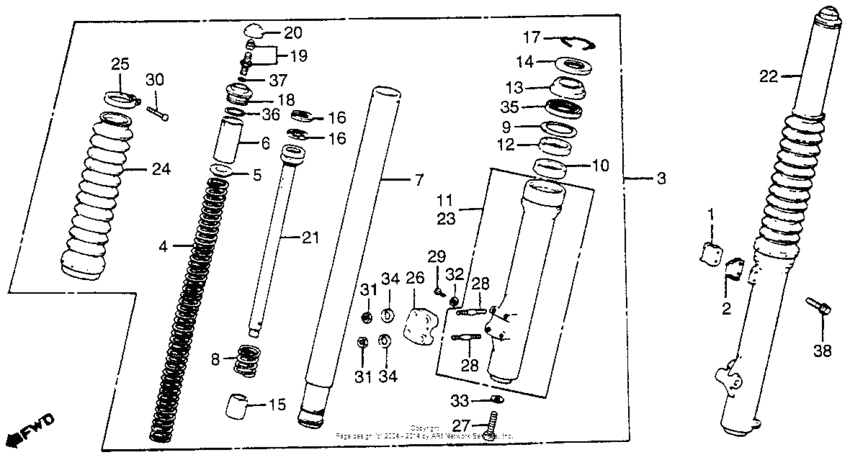

Front fork 81 Diagram Honda CR250
- Year
- 1981
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*BC300025 - JH2ME030*BC305412
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45461-KA4-000
Clamper,fr brk
|
45461-KA4-000 |
— | ||
|
2
|
2
45462-KA4-000
Clamper b,fr.brk.
|
45462-KA4-000 |
— | ||
|
3
|
3
51400-KA4-014
Foek assy,rh.fr.
|
51400-KA4-014 |
— | ||
|
4
|
4
51401-KA4-004
Spring,fr.cushion
|
51401-KA4-004 |
— | ||
|
5
|
5
51403-KA4-004
Guide,spring
|
51403-KA4-004 |
— | ||
|
6
|
6
51404-KA4-004
Spacer,spring
|
51404-KA4-004 |
— | ||
|
7
|
7
51410-KA4-004
Pipe comp.fr.fork
|
51410-KA4-004 |
— | ||
|
8
|
8
51411-KA4-004
Spring,fr.rebound
|
51411-KA4-004 |
— | ||
|
9
|
9
51412-KA4-004 Washer |
51412-KA4-004 |
from US $5.03 |
||
|
10
|
10
51415-KA4-004
Sleeve,fork pipe
|
51415-KA4-004 |
— | ||
|
11
|
11
51421-KA4-004
Case comp,r.bot.
|
51421-KA4-004 |
— | ||
|
12
|
12
51424-KA4-004
Bush,fork pipe
|
51424-KA4-004 |
— | ||
|
13
|
13
51425-KA4-004 Dust seal |
51425-KA4-004 |
US $14.11 |
||
| replacement | |||||
|
13
|
13
51425-KT1-671 Dust seal, fr. fork |
51425-KT1-671 |
from US $11.69 |
||
|
13
|
13
51425-KT1-671 Dust seal, fr. fork |
51425-KT1-671 |
from US $11.69 |
||
|
14
|
14
51425-KT1-671 Dust seal, fr. fork |
51425-KT1-671 |
from US $11.69 |
||
|
15
|
15
51432-KA4-004
Piece,oil lock
|
51432-KA4-004 |
— | ||
|
16
|
16
51437-KA4-004
Ring,piston
|
51437-KA4-004 |
— | ||
|
17
|
17
51447-KA4-004 Ring, snap |
51447-KA4-004 |
from US $3.63 |
||
|
18
|
18
51455-KA4-004
Bolt,fr.fork
|
51455-KA4-004 |
— | ||
|
19
|
19
51456-KA4-004
Valve assy.,air
|
51456-KA4-004 |
— | ||
|
20
|
20
51457-KA4-004
Cap,fork bolt
|
51457-KA4-004 |
— | ||
|
21
|
21
51470-KA4-004 Pipe, seat |
51470-KA4-004 |
US $71.81 |
||
|
22
|
22
51500-KA4-014
Fork Assy., L. Fr.
|
51500-KA4-014 |
— | ||
|
23
|
23
51521-KA4-004
Case,l.bottom
|
51521-KA4-004 |
— | ||
|
24
|
24
51611-KA4-004
Boot,fr.fork
|
51611-KA4-004 |
— | ||
|
25
|
25
51612-KA3-831
Band,boot upper (
|
51612-KA3-831 |
— | ||
|
26
|
26
51634-KT0-671 Holder, axle |
51634-KT0-671 |
from US $18.02 |
||
|
27
|
27
90116-KA4-004
Bolt,socket,14mm
|
90116-KA4-004 |
— | ||
|
28
|
28
90136-KA3-831 Bolt, stud (6x34) |
90136-KA3-831 |
from US $2.52 |
||
|
29
|
29
90201-KA4-004
Screw,pan,4x8
|
90201-KA4-004 |
— | ||
|
30
|
30
90202-KA4-004 Screw, pan (4x16) |
90202-KA4-004 |
US $3.57 |
||
|
31
|
31
90310-KA4-004
Nut,hex.,6mm
|
90310-KA4-004 |
— | ||
|
32
|
32
90543-KA4-004 Washer, drain (4mm) |
90543-KA4-004 |
US $0.95 |
||
|
33
|
33
90544-KF0-000 Washer (14mm) |
90544-KF0-000 |
from US $2.44 |
||
|
34
|
34
90545-KA4-004
Washer,spring,6mm
|
90545-KA4-004 |
— | ||
|
35
|
35
91255-KA4-004
Oilseal41x53x10.5
|
91255-KA4-004 |
— | ||
|
36
|
36
91356-KA4-004
O-ring (31.34x3.53)
|
91356-KA4-004 |
— | ||
|
37
|
37
91357-KA4-004 O-ring (5.8x1.9) |
91357-KA4-004 |
from US $3.48 |
||
|
38
|
38
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
