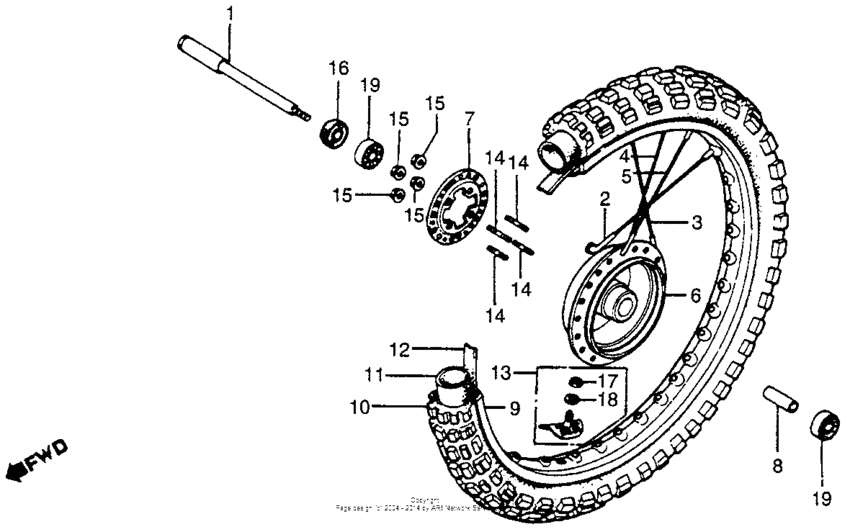

Front wheel 81 Diagram Honda CR250
- Year
- 1981
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*BC300025 - JH2ME030*BC305412
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44301-KA4-000
Axle,fr wheel
|
44301-KA4-000 |
— | ||
|
2
|
2
446A0-KA4-000
Spoke set,b8x234
|
446A0-KA4-000 |
— | ||
|
3
|
3
446B0-KA4-000
Spoke b8x198.5
|
446B0-KA4-000 |
— | ||
|
4
|
4
446C0-KA4-000
Spoke,b8x233.5
|
446C0-KA4-000 |
— | ||
|
5
|
5
446D0-KA4-000
Spoke set,b8x198
|
446D0-KA4-000 |
— | ||
|
6
|
6
44601-MA0-000
Hub,fr wheel
|
44601-MA0-000 |
— | ||
|
7
|
7
44604-MA0-010
Flange,fr.spoke
|
44604-MA0-010 |
— | ||
|
8
|
8
44620-MA0-000
Collar,fr.wheel
|
44620-MA0-000 |
— | ||
|
9
|
9
44701-430-003
Rim,fr.wheel
|
44701-430-003 |
— | ||
|
10
|
10
44711-KA4-003 Tire (3.00-21) (4pr) |
44711-KA4-003 |
US $59.08 |
||
|
11
|
11
44712-446-631
Tube (2.75/3.00-21)
|
44712-446-631 |
— | ||
|
12
|
12
44713-340-003
Flap 2751300-21
|
44713-340-003 |
— | ||
|
13
|
13
44715-444-000
Stopper,bead
|
44715-444-000 |
— | ||
|
14
|
14
90135-107-720 Bolt, stud (6x28) |
90135-107-720 |
from US $2.89 |
||
|
15
|
15
90352-122-003 Nut, driven sprocket (tokai) |
90352-122-003 |
from US $4.74 |
||
|
16
|
16
91254-KA4-003 Dust seal (20x50x5) |
91254-KA4-003 |
US $7.99 |
||
|
17
|
17
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
18
|
18
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
19
|
19
96140-6202010 Bearing (6202u) |
96140-6202010 |
from US $6.51 |
