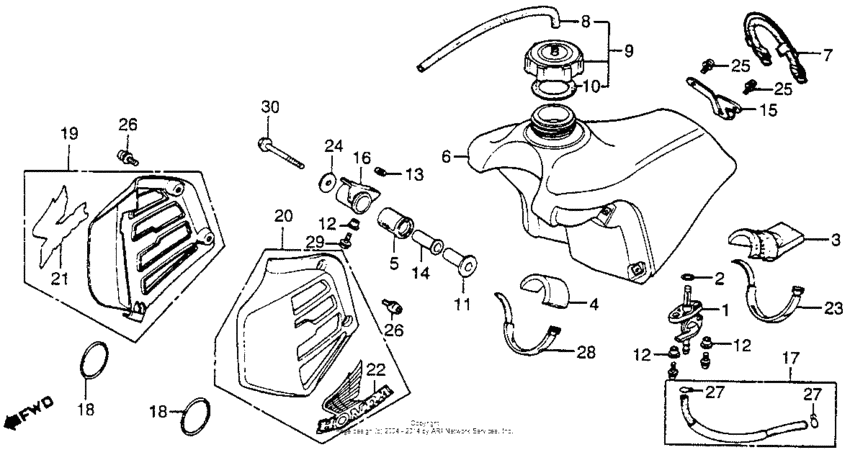

Fuel tank + radiator shroud 81 Diagram Honda CR250
- Year
- 1981
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*BC300025 - JH2ME030*BC305412
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-ML3-911 Petcock assy. |
16950-ML3-911 |
from US $33.59 |
||
|
2
|
2
16997-467-000 O-ring, 11.8x3.55 |
16997-467-000 |
from US $2.07 |
||
|
3
|
3
17504-KA4-000
Rubber a
|
17504-KA4-000 |
— | ||
|
4
|
4
17506-357-000
Rubber b,tank set
|
17506-357-000 |
— | ||
|
5
|
5
17508-KA4-000
Rubb,tank m/t
|
17508-KA4-000 |
— | ||
|
6
|
6
17510-KA4-000
Tank, fuel
|
17510-KA4-000 |
— | ||
|
7
|
7
17516-KA4-000
Band,tank rear
|
17516-KA4-000 |
— | ||
|
8
|
8
17521-429-000 Tube |
17521-429-000 |
from US $5.33 |
||
|
9
|
9
17620-KA4-710
Cap assy,fueltank
|
17620-KA4-710 |
— | ||
|
10
|
10
17624-KA4-000 Gasket |
17624-KA4-000 |
from US $5.03 |
||
|
11
|
11
17625-KA4-000
Collar,tank.fr.mt
|
17625-KA4-000 |
— | ||
|
12
|
12
17626-467-000 Collar, fuel tank setting |
17626-467-000 |
from US $4.44 |
||
|
13
|
13
17627-467-000 Rubber, fr |
17627-467-000 |
from US $2.29 |
||
|
14
|
14
17628-KA4-000
Collar,slider
|
17628-KA4-000 |
— | ||
|
15
|
15
17629-KA4-000
Brkt, rr. fuel tank
|
17629-KA4-000 |
— | ||
|
16
|
16
17634-KA4-000
Bracket, l. fr. tank
|
17634-KA4-000 |
— | ||
|
17
|
17
17681-KA4-000
Tube assy., fuel
|
17681-KA4-000 |
— | ||
|
18
|
18
19053-KA4-000
Band,rad.cover
|
19053-KA4-000 |
— | ||
|
19
|
19
19071-KA4-000
Sub assy.,r rad.
|
19071-KA4-000 |
— | ||
|
20
|
20
19072-KA4-000
Sub assy.,l rad
|
19072-KA4-000 |
— | ||
|
21
|
21
87126-KA4-000
Mark r,rad.cover
|
87126-KA4-000 |
— | ||
|
22
|
22
87127-KA4-000
Mark l,rad.cover
|
87127-KA4-000 |
— | ||
|
23
|
23
90130-KA4-000
Band,wire
|
90130-KA4-000 |
— | ||
|
24
|
24
90501-040-000
Washer, seat setting
|
90501-040-000 |
— | ||
|
25
|
25
93500-060120H Screw, pan, 6x12 |
93500-060120H |
from US $0.44 |
||
|
26
|
26
93891-060-160-8 Screw-washer6X16 |
93891-060-160-8 |
from US $0.52 |
||
|
27
|
27
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
28
|
28
9501462300 Band b3, wire |
9501462300 |
from US $1.55 |
||
|
29
|
29
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
30
|
30
95701-060-450-8 BoltFLANGE, 6X45 |
95701-060-450-8 |
from US $0.74 |
