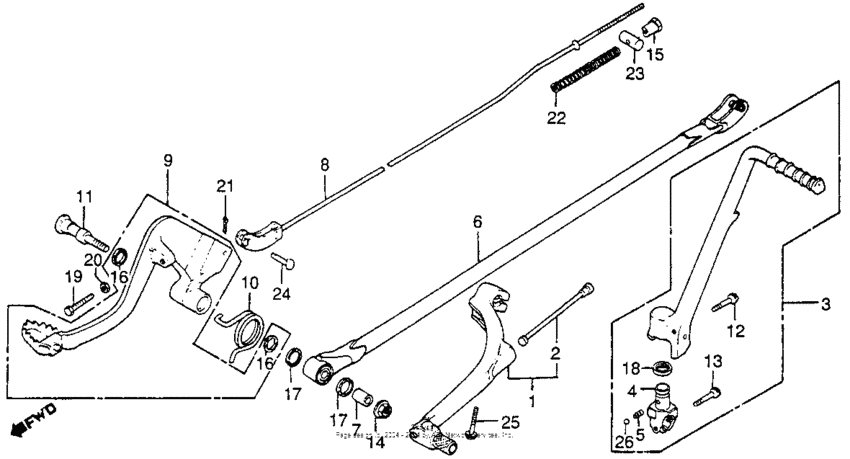

Gearshift pedal + brake pedal + kick starter arm 81 Diagram Honda CR250
- Year
- 1981
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*BC300025 - JH2ME030*BC305412
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-KA4-000
Pedal comp,change
|
24700-KA4-000 |
— | ||
|
2
|
2
24704-KA4-000
Rubb,change pedal
|
24704-KA4-000 |
— | ||
|
3
|
3
28300-KA4-000
Arm assy.,starter
|
28300-KA4-000 |
— | ||
|
4
|
4
28302-KA4-000
Joint,kick arm
|
28302-KA4-000 |
— | ||
|
5
|
5
28333-124-000 Spring |
28333-124-000 |
from US $2.44 |
||
|
6
|
6
43431-KA4-000ZA
Arm, rr. *r23*
|
43431-KA4-000ZA |
— | ||
|
7
|
7
43433-444-000
Collar,distance
|
43433-444-000 |
— | ||
|
8
|
8
43451-KA4-000
Rod,rr brk
|
43451-KA4-000 |
— | ||
|
9
|
9
46510-KA4-000
Pedal,brk
|
46510-KA4-000 |
— | ||
|
10
|
10
46511-KA4-000
Spg,brk pedal
|
46511-KA4-000 |
— | ||
|
11
|
11
46513-KA4-000
Shaft,brk pedal
|
46513-KA4-000 |
— | ||
|
12
|
12
90101-329-000 Bolt, kick arm |
90101-329-000 |
from US $3.47 |
||
|
13
|
13
90124-KA4-000
Screw,socket cap
|
90124-KA4-000 |
— | ||
|
14
|
14
90304-GA6-003 Nut, axle, 10mm |
90304-GA6-003 |
from US $2.96 |
||
|
15
|
15
90339-430-000
Nut,adjusting
|
90339-430-000 |
— | ||
|
16
|
16
91251-444-000 Dust seal |
91251-444-000 |
from US $3.70 |
||
|
17
|
17
91302-430-003
O-ring,20x1.8
|
91302-430-003 |
— | ||
|
18
|
18
91303-KA4-003
Dust,seal,19x25x3
|
91303-KA4-003 |
— | ||
|
19
|
19
92028-06028-0A
Bolt,hex,6x28
|
92028-06028-0A |
— | ||
|
20
|
20
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
21
|
21
94201-16120 PinSPLIT, 1.6X12 |
94201-16120 |
from US $0.37 |
||
|
22
|
22
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
23
|
23
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
24
|
24
9501552000 Pin b, brake rod joint |
9501552000 |
from US $1.48 |
||
|
25
|
25
95700-060-250-8 BoltFLANGE, 6X25 |
95700-060-250-8 |
US $27.50 |
||
| replacement | |||||
|
25
|
25
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
25
|
25
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
26
|
26
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
