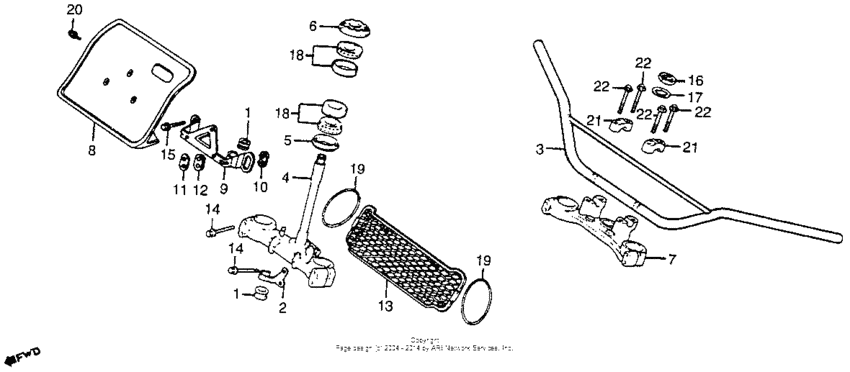

Handlebar + top bridge 81 Diagram Honda CR250
- Year
- 1981
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*BC300025 - JH2ME030*BC305412
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45466-KA4-000 Guide, cable (inner) |
45466-KA4-000 |
from US $4.74 |
||
|
2
|
2
45468-KA4-000
Guide,cable btm
|
45468-KA4-000 |
— | ||
|
3
|
3
53100-KA4-000
Pipe,strg hndl
|
53100-KA4-000 |
— | ||
|
4
|
4
53200-KA4-000
Stem comp.,strg
|
53200-KA4-000 |
— | ||
|
5
|
5
53214-430-003 Dust seal,strg. |
53214-430-003 |
US $7.99 |
||
|
6
|
6
53220-KA4-000
Thread comp.,strg
|
53220-KA4-000 |
— | ||
|
7
|
7
53230-KA4-000
Bridge, fork (upper)
|
53230-KA4-000 |
— | ||
|
8
|
8
61136-KA4-670ZA
Plate, fr. *nh24*
|
61136-KA4-670ZA |
— | ||
|
9
|
9
61137-KA4-670
Stay,fr.no.plate
|
61137-KA4-670 |
— | ||
|
10
|
10
61142-KA4-000
Collar,no.pl.stay
|
61142-KA4-000 |
— | ||
|
11
|
11
61143-KA4-000
Washer,no.pl.stay
|
61143-KA4-000 |
— | ||
|
12
|
12
61144-KA4-000
Rubber,no.pl.stay
|
61144-KA4-000 |
— | ||
|
13
|
13
61150-KA4-000
Grille,fr
|
61150-KA4-000 |
— | ||
|
14
|
14
90103-KB7-000 Bolt, flange, 8x45 |
90103-KB7-000 |
US $3.48 |
||
|
15
|
15
90105-KA4-000
Bolt,flang 8x55
|
90105-KA4-000 |
— | ||
|
16
|
16
90304-425-000 Nut, steering stem |
90304-425-000 |
from US $9.92 |
||
|
17
|
17
90503-425-000 Washer |
90503-425-000 |
from US $2.89 |
||
|
18
|
18
91015-371-000
R/brg tap n/com
|
91015-371-000 |
— | ||
|
19
|
19
91316-PE7-730 O-ring62.4X3.1 |
91316-PE7-730 |
from US $4.22 |
||
|
20
|
20
93891-060-140-7 Screw-wash,6x14 |
93891-060-140-7 |
US $0.52 |
||
|
21
|
21
9501422200 Holder b2, handlebar |
9501422200 |
from US $7.70 |
||
|
22
|
22
95701-080-350-0 BoltFLANGE, 8X35 |
95701-080-350-0 |
from US $0.74 |
