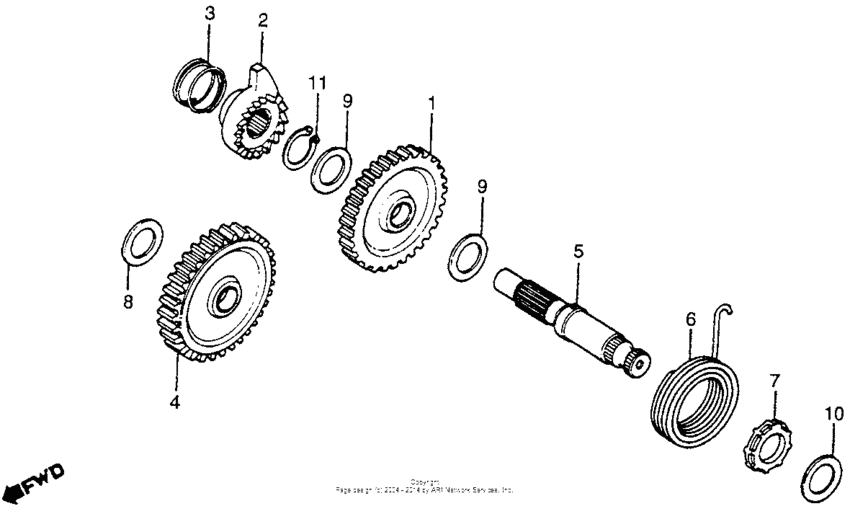

Kick starter spindle 81 Diagram Honda CR250
- Year
- 1981
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*BC300025 - JH2ME030*BC305412
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28210-KA4-000
Pinion comp.,kick
|
28210-KA4-000 |
— | ||
|
2
|
2
28221-KA4-000
Ratchet,kick star
|
28221-KA4-000 |
— | ||
|
3
|
3
28223-KA4-000
Spring,kick start
|
28223-KA4-000 |
— | ||
|
4
|
4
28230-KA4-000
Idler, kick (30t)
|
28230-KA4-000 |
— | ||
|
5
|
5
28251-KA4-000
Spindle,kick
|
28251-KA4-000 |
— | ||
|
6
|
6
28261-KA4-000
Spg.kick return
|
28261-KA4-000 |
— | ||
|
7
|
7
28282-KA4-505
Collar, kick spring
|
28282-KA4-505 |
— | ||
|
8
|
8
90446-357-000 Washer, thrust, 17.2mm |
90446-357-000 |
from US $3.40 |
||
|
9
|
9
90452-155-000 Washer, 18.2x26x1 |
90452-155-000 |
US $2.66 |
||
|
10
|
10
90453-360-000 Washer, thrust, 20mm |
90453-360-000 |
from US $3.48 |
||
|
11
|
11
94510-18000 CirclipEXTERNAL, 18MM |
94510-18000 |
from US $0.45 |
